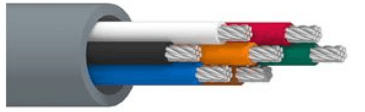

Belden 9439 060, Multi Conductor Cable 7C 20 AWG PVC, Chrome Jacket
SKU:Belden 9439 060
● In stock
Description
Belden 9439 060 is a 7-conductor 20 AWG multi conductor cable with stranded (7x28) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket in Chrome. It is rated 300 V (CMG) and 300 V (UL AWM 2464) and is identified for indoor (not riser or plenum) use. Electrical characteristics include 10.7 Ohm/1000ft nominal conductor DCR and 27 pF/ft (89 pF/m) nominal conductor-to-conductor capacitance.
Belden 9439 060 Key Features
- Includes 7 conductors in a single multi conductor cable for consolidated low-voltage signal and control wiring.
- Uses 20 AWG conductors with stranded (7x28) TC - Tinned Copper for flexible terminations and consistent conductivity.
- Features PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket in Chrome.
- Voltage ratings are 300 V (CMG) and 300 V (UL AWM 2464).
- Designed for indoor (not riser or plenum) use with NEC / UL compliance to Article 800, CMG.
Belden 9439 060 Applications
- Supports low voltage analog signals such as 4-20ma and 0-10v for instrumentation and control signal runs.
- Handles low voltage control circuits, including 24v control, when multiple conductors are needed in one cable.
- Provides line level audio connections where consistent conductor-to-conductor performance is required.
- Enables voice communications wiring in indoor environments.
- Helps with panel wiring by organizing multiple signal and control connections in a single run.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Material | TC - Tinned Copper |
| Insulation nominal thickness | 0.015 in (0.38 mm) |
| Insulation nominal diameter | 0.065 in (1.7 mm) |
| Color Code | Black, White, Red, Green, Brown, Blue, Orange |
| Outer jacket nominal thickness | 0.032 in (0.81 mm) |
| Overall cable diameter (nominal) | 0.260 in (6.60 mm) |
| Bulk cable weight | 50 lbs/1000ft |
| Nominal conductor DCR | 10.7 Ohm/1000ft |
| Nominal capacitance (Cond-to-Cond) | 27 pF/ft (89 pF/m) |
| Max. current | 2.8 Amps per conductor at 25ºC |
| UL temperature | 80°C |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 2.6 in (66 mm) |
| Bend radius (installation min.) | 2.6 in (66 mm) |
| Max Pull Tension | 88 lbs (40 kg) |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2464 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9439 060100 UPC 612825249146; 9439 060250; 9439 060500 UPC 612825249160; 9439 0601000 UPC 612825249153 |
| Priced Per | FT |
