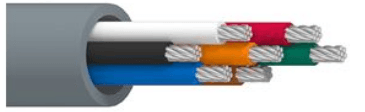

Belden 9439 060U, Multi Conductor Cable 7C 20 AWG PVC, Chrome Jacket
SKU:Belden 9439 060U1000
● In stock
Description
Belden 9439 060U is a multi-conductor 7C 20 AWG cable with 20 AWG stranded (7x28) tinned copper conductors, PVC insulation, and a PVC outer jacket in Chrome. It is rated 300 V (CMG) and 300 V (UL AWM 2464) and is specified for general-purpose indoor applications meeting CMG requirements. This cable is unshielded and has a 0.260 in (6.60 mm) nominal overall diameter for compact routing in panels and equipment.
Belden 9439 060U Key Features
- 7-conductor, 20 AWG construction with 20 AWG stranded (7x28) tinned copper conductors.
- PVC - Polyvinyl Chloride insulation and PVC - Polyvinyl Chloride outer jacket in Chrome.
- Unshielded design (Shield: No).
- Voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- 0.260 in (6.60 mm) nominal overall cable diameter for compact routing.
Belden 9439 060U Applications
- Supports low voltage analog signals (4-20ma, 0-10v, ...) in signal and control wiring where consistent low-voltage transmission is needed.
- Suitable for low voltage control (24v, …) circuits used in control and interconnect wiring.
- Works for line level audio connections where multi-conductor wiring is required.
- Meets voice communications wiring needs in indoor installations.
- Commonly used for panel wiring to help organize and route multiple conductors within equipment and control panels.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 7 |
| Conductor size | 20 AWG |
| Conductor stranding | 7x28 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Color Code | Black, White, Red, Green, Brown, Blue, Orange |
| Insulation nominal thickness | 0.015 in (0.38 mm) |
| Insulation nominal diameter | 0.065 in (1.7 mm) |
| Outer jacket nominal thickness | 0.032 in (0.81 mm) |
| Nom. conductor DCR | 10.7 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 27 pF/ft (89 pF/m) |
| Max. current | 2.8 Amps per Conductor at 25ºC |
| Operating temperature | -20°C to +80°C |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 2.6 in (66 mm) |
| Bend radius (installation min.) | 2.6 in (66 mm) |
| Max Pull Tension | 88 lbs (40 kg) |
| Bulk cable weight | 50 lbs/1000ft |
| Environmental suitability | Indoor (Not Riser or Plenum), Indoor |
| NEC / UL compliance | Article 800, CMG |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2464 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9439 060U1000 UPC 612825249122 |
| Priced Per | FT |
