Belden 9451 002U, Multi Conductor Cable 2C 22 AWG PVC FR Red
Description

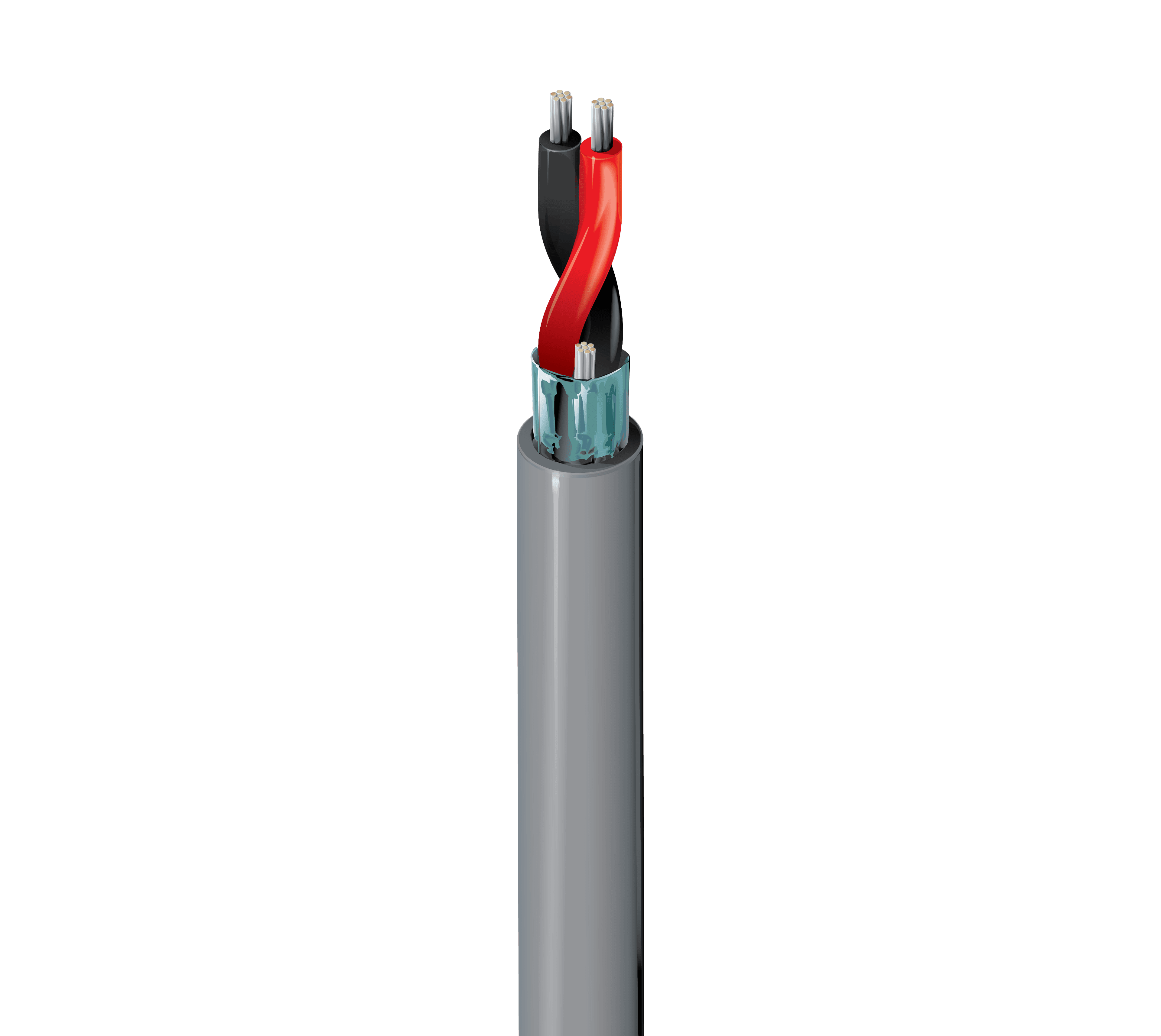

Belden 9451 002U is a 1 pair 22 AWG audio and control cable with stranded (7x30) TC - Tinned Copper conductors, PP - Polypropylene insulation, and a PVC - Polyvinyl Chloride jacket. It uses a Beldfoil® tape shield with 100% coverage plus a 22 AWG (7x30) TC drain wire to help reduce noise in line level audio, computer communication, and low voltage analog or digital control circuits. The jacket and shield are bonded to support automatic stripping equipment. It is rated for indoor riser applications and is UL listed for Article 800, CMR with a 300 V (CMR) voltage rating.
Belden 9451 002U Key Features
- 1 pair 22 AWG construction with stranded (7x30) TC - Tinned Copper conductors.
- PP - Polypropylene insulation with a black & red color code.
- Beldfoil® shield (tape) with 100% coverage and a 22 AWG (7x30) TC drain wire inside the foil shield.
- Bonded jacket and shield for removal on automatic stripping equipment.
- UL listed for Article 800, CMR with a 300 V (CMR) voltage rating.
- Fire rating: riser; environmental suitability: indoor - riser, indoor.
Belden 9451 002U Applications
- Supports automatic stripping equipment where the jacket and shield need to be removed together.
- Handles low voltage analog signals (4-20mA, 0-10V, ...) in control and signal wiring.
- Enables low voltage digital control (24V, …) in automation and control circuits.
- Provides line level audio connections where noise reduction is important.
- Fits computer communication signal runs that benefit from shielding.
- Serves panel wiring in control panels and related enclosures.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Audio Cable |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PP - Polypropylene |
| Nom. thickness (insulation) | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.046 in (1.2 mm) |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. thickness (jacket) | 0.020 in (0.51 mm) |
| Nom. diameter | 0.135 in (3.43 mm) |
| Nom. conductor DCR | 14.1 Ohm/1000ft (46.3 Ohm/km) |
| Nom. outer shield DCR | 14.3 Ohm/1000ft (46.9 Ohm/km) |
| Nom. capacitance cond-to-cond | 35 pF/ft (110 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 67 pF/ft (220 pF/m) |
| Nom. characteristic impedence | 45 Ohm |
| Nom. delay | 1.54 ns/ft |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Nom. velocity of prop. | 66% |
| Max. current | 2.9 Amps per Conductor at 25ºC |
| UL temperature | 60°C |
| Operating temperature | -20°C to +75°C |
| Stationary min. bend radius | 1.4 in (36 mm) |
| Installation min. bend radius | 1.4 in (36 mm) |
| Max Pull Tension | 27 lbs (12 kg) |
| Bulk cable weight | 14 lbs/1000ft (21 kg/km) |
| Flammability / reaction to fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMR |
| NEC rating | UL Listed Art 800 Riser |
| CEC / C(UL) compliance | CMR |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Plenum number | 9451P |
| Priced Per | FT |
