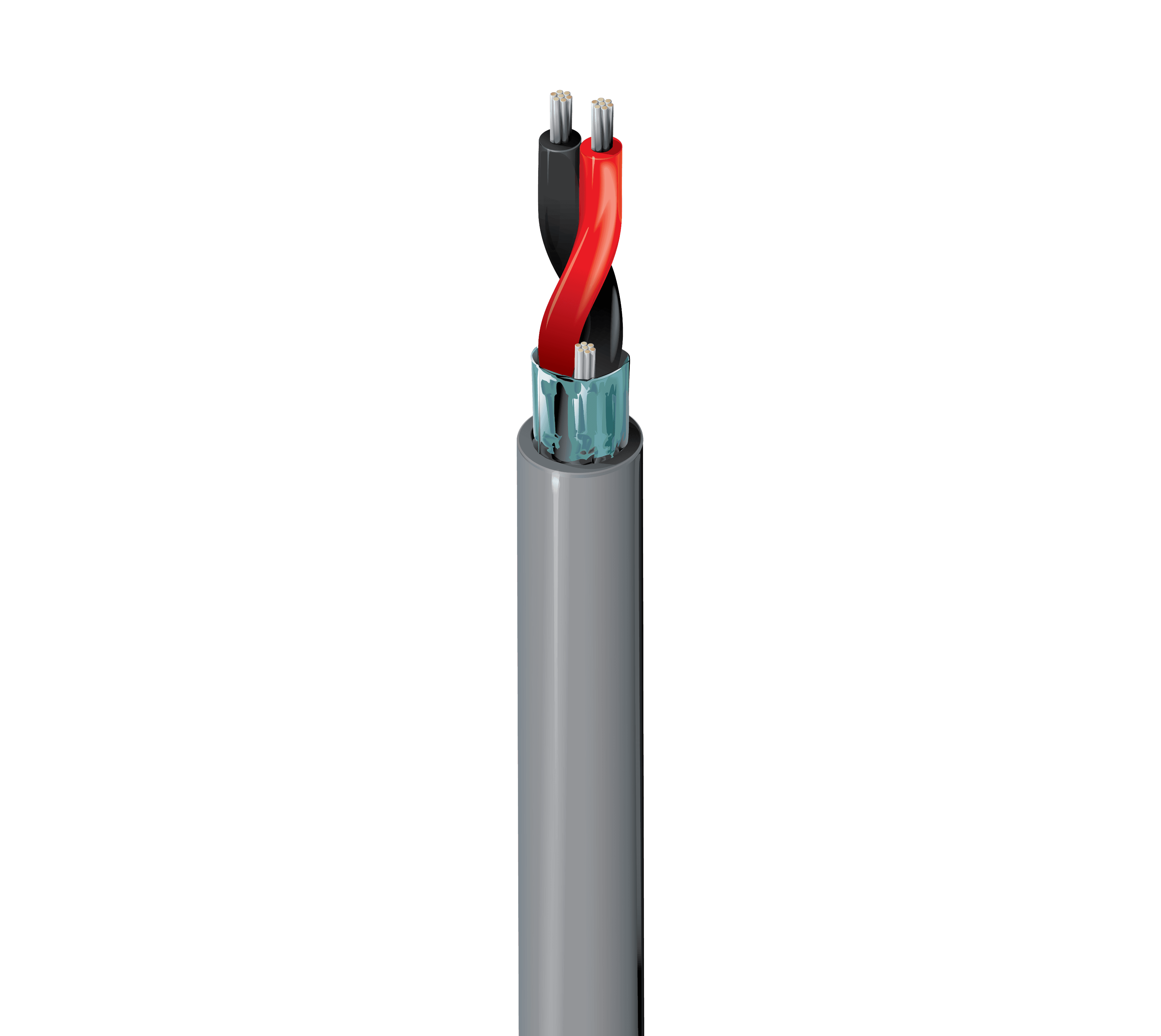

Belden 9451 010, Audio Cable 2C 22 AWG Beldfoil Shielded CMR

Belden 9451 010 is a 1 pair audio cable built with 22 AWG stranded (7x30) TC - Tinned Copper conductors and PP - Polypropylene insulation. It uses a tape shield made from Bi-Laminate (Alum+Poly) with 100% coverage plus a 22 AWG (7x30) TC drainwire to help reduce noise in line level audio, control, and communication circuits. The PVC - Polyvinyl Chloride jacket features a bonded jacket/shield design for compatibility with automatic stripping equipment. It is rated CMR with a UL voltage rating of 300 V (CMR).

Belden 9451 010 Key Features

• 1 pair construction with 22 AWG stranded (7x30) TC - Tinned Copper conductors.
• PP - Polypropylene insulation with Black & Red color code.
• Tape shield with Bi-Laminate (Alum+Poly) material and 100% coverage.
• 22 AWG (7x30) TC drainwire; drain wire is inside foil shield.
• PVC - Polyvinyl Chloride jacket with bonded jacket/shield design so both can be removed on automatic stripping equipment.
• CMR rating with UL voltage rating: 300 V (CMR).

Belden 9451 010 Applications

• Use with automatic stripping equipment where the bonded jacket/shield design supports efficient jacket and shield removal.
• Support low voltage analog signals (4-20mA, 0-10V, ...) in control and communication circuits.
• Run low voltage digital control (24V, …) signals.
• Connect line level audio where shielding helps reduce noise.
• Install in computer communication wiring.
• Fit panel wiring needs in indoor installations.

Belden™ and all associated trademarks are the property of their respective owners.
