Belden 9451P 009U, 22 AWG 1P Shielded FEP LS PVC Jacket CMP ROHS
SKU:Belden 9451P 009U
● In stock
Description

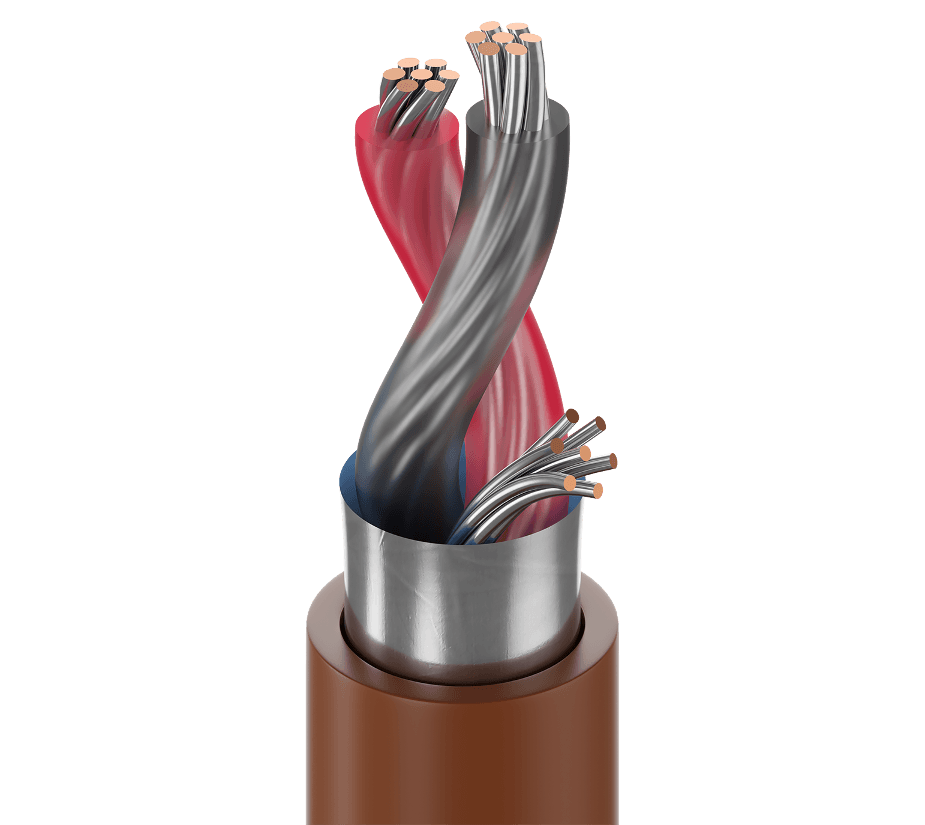

Belden 9451P 009U is a line level audio cable designed for low voltage analog signals and control in indoor plenum spaces. It features 1 pair of 22 AWG (7x30) TC - Tinned Copper conductors, FEP - Fluorinated Ethylene Propylene insulation, and an overall Beldfoil® Shield. The Flamarrest® Jacket (PVC - Polyvinyl Chloride) and bonded foil shield support efficient stripping on automatic equipment. Electrical performance includes 18.2 Ohm/1000ft (59.7 Ohm/km) Nom. Conductor DCR, 35 pF/ft (110 pF/m) Nom. capacitance Cond-to-Cond, and a 300 V (CMP) UL Voltage Rating.
Belden 9451P 009U Key Features
- 1 pair construction with 22 AWG (7x30) TC - Tinned Copper conductors.
- FEP - Fluorinated Ethylene Propylene insulation with Black & Red color code.
- Overall Beldfoil® Shield (Tape) with Bi-Laminate (Alum+Poly) material and 100% coverage.
- Bonded jacket and shield design for removal on automatic stripping equipment; Drain Wire is inside Foil Shield.
- Flamarrest® Jacket made from PVC - Polyvinyl Chloride.
- Environmental suitability listed as Indoor - Plenum, Indoor.
- NEC / UL compliance: Article 800, CMP; CEC / C(UL) compliance: CMP.
- Flammability / reaction to fire: NFPA 262 (UL910), FT6, IEC 60332-1-2.
- CPR compliance: CPR Euroclass: Eca.
- European directive compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE).
- UK regulation compliance: UKCA Mark.
- APAC compliance: China RoHS II (GB/T 26572-2011).
Belden 9451P 009U Applications
- Use it for line level audio connections where consistent signal transfer is needed.
- Run it for low voltage analog signals and control in indoor plenum spaces.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Max. current | 4.4 Amps per Conductor @ 25°C |
| Drainwire type | 22 AWG (7x30) TC |
| Shield DCR (Nom outer) | 13.93 Ohm/1000ft (45.70 Ohm/km) |
| Insulation thickness (nom.) | 0.008 in (0.20 mm) |
| Insulation diameter (nom.) | 0.044 in (1.1 mm) |
| Jacket thickness (nom.) | 0.017 in (0.43 mm) |
| Overall diameter (Nom.) | 0.127 in (3.23 mm) |
| Bulk cable weight | 14 lbs/1000ft (21 kg/km) |
| Capacitance, Cond-to-other (nom.) | 67 pF/ft (220 pF/m) |
| Inductance (nom.) | 0.15 µH/ft (0.49 µH/m) |
| Delay (nom.) | 1.47 ns/ft |
| Velocity of prop. (nom.) | 69% |
| UL temperature | 60°C |
| Operating temperature | -20°C to +75°C |
| Stationary min. bend radius | 1.3 in (33 mm) |
| Installation min. bend radius | 1.3 in (33 mm) |
| Max Pull Tension | 27 lbs (12 kg) |
| Non-Plenum number | 9451 |
| Priced Per | FT |
