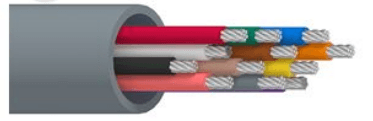

Belden 9457 060, Multi Conductor Cable 12C 20 AWG PVC, Chrome Jacket
SKU:Belden 9457 060
● In stock
Description
Belden 9457 060 is a 12-conductor, 20 AWG multi-conductor cable with stranded (7x28) TC - tinned copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket in Chrome. Designed for general-purpose indoor use, it is rated 300 V (CMG) and 300 V (UL AWM 2464). Electrical performance includes 10.7 Ohm/1000ft nominal conductor DCR, 27 pF/ft (89 pF/m) nominal capacitance Cond-to-Cond, and a max. current of 2.8 Amps per Conductor at 25ºC.
Belden 9457 060 Key Features
- This cable provides 12 conductors in a single multi-conductor design for consolidated signal and control wiring.
- It uses 20 AWG conductors with stranded (7x28) TC - tinned copper for flexible handling during routing and termination.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket are paired with a Chrome jacket color.
- Voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Max. current: 2.8 Amps per Conductor at 25ºC.
- Environmental suitability: indoor (not riser or plenum), indoor.
- Compliance listings include Article 800, CMG, and AWM 2464.
Belden 9457 060 Applications
- Common uses include carrying low voltage analog signals (4-20ma, 0-10v, ...) in instrumentation and signal wiring runs.
- Low voltage control (24v, …) circuits are supported where multiple conductors are needed in a single cable.
- Line level audio connections are supported where multi-conductor routing is required.
- Voice communications wiring can be supported in indoor installations.
- Panel wiring is supported where organized multi-conductor terminations are needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nominal conductor DCR | 10.7 Ohm/1000ft |
| Nominal capacitance (Cond-to-Cond) | 27 pF/ft (89 pF/m) |
| Insulation nominal thickness | 0.015 in (0.38 mm) |
| Insulation nominal diameter | 0.065 in (1.7 mm) |
| Insulation color code | Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan |
| Outer jacket nominal thickness | 0.035 in (0.89 mm) |
| Overall cable diameter (nominal) | 0.338 in (8.59 mm) |
| Bulk cable weight | 74 lbs/1000ft |
| Operating temperature | -20°C to +80°C |
| UL temperature | 80°C |
| Stationary minimum bend radius | 3.4 in (86 mm) |
| Installation minimum bend radius | 3.4 in (86 mm) |
| Max Pull Tension | 151 lbs (68.5 kg) |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| CEC / C(UL) compliance | CMG |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9457 060100 UPC 612825253259; 9457 060250; 9457 060500 UPC 612825253273; 9457 0601000 UPC 612825253266; 9457 0605000 UPC 612825253280 |
| Priced Per | FT |
