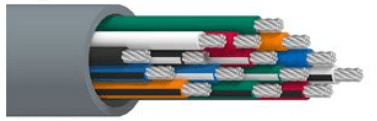

Belden 9458 060, Multi Conductor Cable 15C 20 AWG PVC, Chrome Jacket
SKU:Belden 9458 060
● In stock
Description
Belden 9458 060 is a 15-conductor multi-conductor cable built with 20 AWG stranded (7x28) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket in Chrome. It is rated 300 V (CMG), 300 V (UL AWM 2464) and supports 2.8 Amps per Conductor at 25ºC. This cable is specified for Indoor (Not Riser or Plenum), Indoor environments and meets UL 1685 FT4 Loading, FT4, Article 800, CMG, and AWM 2464.
Belden 9458 060 Key Features
- 15 conductors for multi-conductor signal and control wiring.
- 20 AWG stranded (7x28) TC - Tinned Copper conductors.
- PVC - Polyvinyl Chloride insulation and PVC - Polyvinyl Chloride outer jacket.
- Jacket color: Chrome.
- Shield: No.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Max. current: 2.8 Amps per Conductor at 25ºC.
- Environmental suitability: Indoor (Not Riser or Plenum), Indoor.
- Flammability / reaction to fire: UL 1685 FT4 Loading, FT4.
- NEC / UL compliance: Article 800, CMG.
- AWM compliance: AWM 2464.
- CEC / C(UL) compliance: CMG.
- European directive compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE).
- APAC compliance: China RoHS II (GB/T 26572-2011).
Belden 9458 060 Applications
- Supports low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation wiring.
- Handles low voltage control (24v, …) when multiple conductors are needed for control circuits.
- Provides line level audio connections in installed wiring runs.
- Enables voice communications wiring where multi-conductor routing is required.
- Helps with panel wiring to organize and route multiple circuits within enclosures.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nom. thickness (insulation) | 0.015 in (0.38 mm) |
| Nom. insulation diameter | 0.065 in (1.7 mm) |
| Nom. thickness (outer jacket) | 0.040 in (1.0 mm) |
| Nom. diameter (outer jacket) | 0.389 in (9.88 mm) |
| Overall cable diameter (nominal) | 0.389 in (9.88 mm) |
| Color Code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe |
| Nom. conductor DCR | 10.7 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 27 pF/ft (89 pF/m) |
| UL temperature | 80°C |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 3.9 in (99 mm) |
| Bend radius (installation min.) | 3.9 in (99 mm) |
| Max Pull Tension | 189 lbs (85.7 kg) |
| Bulk cable weight | 100 lbs/1000ft |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9458 060100 UPC 612825253297; 9458 060250; 9458 060500 UPC 612825253310; 9458 0601000 UPC 612825253303; 9458 0605000 UPC 612825253327 |
| Priced Per | FT |
