Belden 9463 001, Twinax Blue Hose Cable 78 OHM Brown
SKU:Belden 9463 001
● In stock
Description

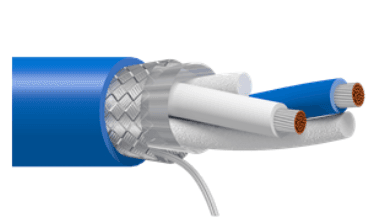

Belden 9463 001 Blue Hose® is a 78 Ohm twinax cable designed for Allen Bradley Data Highway communication in harsh environments. It is built with 1 pair 20 AWG (7x28) TC - Tinned Copper conductors and PE - Polyethylene insulation (Clear & Blue). For noise protection, it uses a Bi-Laminate (Alum+Poly) tape shield with 100% coverage plus a Tinned Copper (TC) braid with 60% coverage, and it is finished with a PVC - Polyvinyl Chloride jacket in Brown. The cable is rated CM and is suitable for indoor, outdoor, sunlight resistance.
Belden 9463 001 Key Features
- 78 Ohm twinax cable for Allen Bradley Data Highway communication in harsh environments.
- 1 pair 20 AWG (7x28) TC - Tinned Copper stranded conductors with PE - Polyethylene insulation (Clear & Blue).
- Shield type: braid over foil, using Bi-Laminate (Alum+Poly) tape (100% coverage) plus a Tinned Copper (TC) braid (60% coverage).
- PVC - Polyvinyl Chloride jacket in Brown with overall cable diameter (nominal): 0.238 in (6.05 mm).
- Environmental suitability: indoor, outdoor, sunlight resistance; NEC / UL compliance includes CM and CL2.
Belden 9463 001 Applications
- Install in harsh environment locations where Allen Bradley Data Highway communication is required.
- Provides an Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices.
- Supports PLC processor interlocking in control and automation systems.
- Enables peer-to-peer messaging between connected devices on the network.
- Use for remote programming, troubleshooting, and I/O updates.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Coax construction | Twinaxial |
| Coax Type | Twinaxial |
| Conductor Type | Stranded Conductor |
| Insulation thickness (nom.) | 0.019 in (0.48 mm) |
| Insulation diameter (nom.) | 0.0755 in (1.92 mm) |
| Construction notes | Twinax with rod fillers |
| Drainwire type | 20 AWG (7x28) TC |
| Jacket thickness (nom.) | 0.037 in (0.94 mm) |
| Jacket OD +/- | 0.003 |
| Flooded | No not flooded over braid |
| Bulk cable weight | 36 lbs/1000ft |
| Plenum number | 89463 |
| Nom. conductor DCR | 9.5 Ohm/1000ft |
| Nom. outer shield DCR | 4.1 Ohm/1000ft (13 Ohm/km) |
| Nom. capacitance cond-to-cond | 19.7 pF/ft (64.6 pF/m) |
| Nom. capacitance (Cond-to-Shield) | 37 pF/ft (120 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 36 pF/ft (120 pF/m) |
| Nom. delay | 1.54 ns/ft |
| Nom. inductance | 0.12 µH/ft (0.39 µH/m) |
| Nom. velocity of prop. | 66% |
| High frequency attenuation | 1 MHz: 0.6 dB/100ft; 10 MHz: 2.1 dB/100ft; 50 MHz: 5.0 dB/100ft; 100 MHz: 7.5 dB/100ft; 200 MHz: 11.0 dB/100ft; 400 MHz: 16.0 dB/100ft |
| UL Voltage Rating | 300 V (CM, CL2), 300 V (UL AWM 2464) |
| UL temperature | 80°C |
| Operating temperature | -40°C to +80°C |
| Installation temperature | -40°C To +80°C |
| Storage temperature | -40°C to +80°C |
| Stationary min. bend radius | 2.4 in (61 mm) |
| Installation min. bend radius | 2.4 in (61 mm) |
| Max Pull Tension | 48 lbs (22 kg) |
| Flammability / reaction to fire | UL 1685 UL Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL compliance | Article 725, Article 800, CM, CL2 |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CM |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| Other standard compliance(s) | P-7K-SC-182141-MSHA, Allen Bradley Part No. 1770-CD |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 9463 001100; 9463 001250; 9463 001500; 9463 0011000 |
| Priced Per | FT |
