Belden 9463 J22, Twinax Blue Hose 78 OHM Blue Strong
SKU:Belden 9463 J22
● In stock
Description

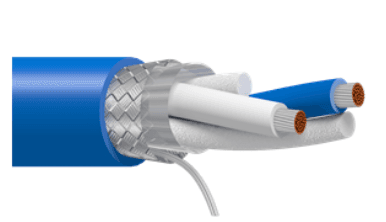

Belden 9463 J22 Blue Hose® is a 78 Ohm twinax cable designed for Allen Bradley Data Highway communication in harsh environments. It is built with 1 pair 20 AWG (7x28) TC - Tinned Copper conductors and PE - Polyethylene insulation in Clear & Blue, using twinax construction with rod fillers. For noise immunity, it uses braid over foil shielding, including a 100% Bi-Laminate (Alum+Poly) tape shield with a 20 AWG (7x28) TC drainwire, plus a Tinned Copper (TC) braid. The Blue PVC - Polyvinyl Chloride jacket is rated for Indoor, Outdoor, and Sunlight Resistance, with CM and CL2 compliance.
Belden 9463 J22 Key Features
- This is a 78 Ohm twinax cable for Allen Bradley Data Highway communication.
- It features 1 pair 20 AWG (7x28) TC - Tinned Copper conductors with PE - Polyethylene insulation (Clear & Blue).
- The construction is twinax with rod fillers.
- Shield type: both, braid over foil, using a 100% Bi-Laminate (Alum+Poly) tape shield plus a Tinned Copper (TC) braid.
- The Blue PVC - Polyvinyl Chloride jacket supports environmental suitability for Indoor, Outdoor, and Sunlight Resistance.
- NEC / UL compliance includes Article 725, Article 800, CM, CL2.
Belden 9463 J22 Applications
- This cable is intended for harsh environment installations where Allen Bradley Data Highway communication is required.
- It supports an Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers, and other intelligent devices.
- Use it for PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, and I/O updates.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Coax construction | Twinaxial |
| Coax Type | Twinaxial |
| Insulation thickness (nom.) | 0.019 in (0.48 mm) |
| Insulation diameter (nom.) | 0.0755 in (1.92 mm) |
| Tape coverage | 100% |
| Drainwire type | 20 AWG (7x28) TC |
| Braid coverage | 60% |
| Jacket thickness (nom.) | 0.037 in (0.94 mm) |
| Jacket diameter (nom.) | 0.238 in (6.05 mm) |
| Overall cable diameter (nominal) | 0.238 in (6.05 mm) |
| Jacket OD +/- | 0.003 |
| Flooded | No not flooded over braid |
| Bulk cable weight | 36 lbs/1000ft |
| Nom. outer shield DCR | 4.1 Ohm/1000ft (13 Ohm/km) |
| Nom. conductor DCR | 9.5 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 19.7 pF/ft (64.6 pF/m) |
| Nom. capacitance (Cond-to-Shield) | 37 pF/ft (120 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 36 pF/ft (120 pF/m) |
| Nom. delay | 1.54 ns/ft |
| Nom. inductance | 0.12 µH/ft (0.39 µH/m) |
| Nom. velocity of prop. | 66% |
| Nom. insertion loss at 1 MHz | 0.6 dB/100ft |
| Nom. insertion loss at 10 MHz | 2.1 dB/100ft |
| Nom. insertion loss at 50 MHz | 5.0 dB/100ft |
| Nom. insertion loss at 100 MHz | 7.5 dB/100ft |
| Nom. insertion loss at 200 MHz | 11.0 dB/100ft |
| Nom. insertion loss at 400 MHz | 16.0 dB/100ft |
| UL Voltage Rating | 300 V (CM, CL2), 300 V (UL AWM 2464) |
| UL temperature | 80°C |
| Operating temperature | -40°C to +80°C |
| Installation temperature | -40°C to +80°C |
| Storage temperature | -40°C to +80°C |
| Bend radius (stationary min.) | 2.4 in (61 mm) |
| Bend radius (installation min.) | 2.4 in (61 mm) |
| Max Pull Tension | 48 lbs (22 kg) |
| Flammability / reaction to fire | UL 1685 UL Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CM |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| Other standard compliance(s) | P-7K-SC-182141-MSHA, Allen Bradley Part No. 1770-CD |
| Plenum number | 89463 |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 9463 J22100; 9463 J22250; 9463 J22500; 9463 J221000 |
| Priced Per | FT |
