Belden 9463 J22U, Twinax Blue Hose 78 OHM Blue Strong

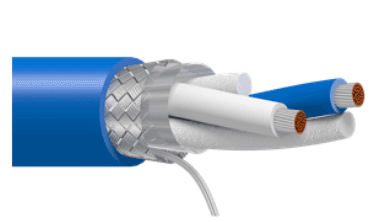

Belden 9463 J22U Blue Hose® for Data Highway Plus is a 78 Ohm twinax cable designed for harsh-environment industrial communications. It features 1 pair 20 AWG (7x28) TC - Tinned Copper conductors with PE - Polyethylene insulation in Clear & Blue, along with a dual shield for noise protection. The overall Beldfoil® tape shield provides 100% coverage and is complemented by a Tinned Copper (TC) braid. A Blue PVC - Polyvinyl Chloride jacket supports Indoor, Outdoor, and Sunlight Resistance requirements, with UL Voltage Rating: 300 V (CM, CL2), 300 V (UL AWM 2464).

Belden 9463 J22U Key Features

• This 78 Ohm twinax design supports Data Highway Plus industrial communications.
• It uses 1 pair 20 AWG (7x28) TC - Tinned Copper conductors with PE - Polyethylene insulation (Clear & Blue).
• Dual shielding combines Beldfoil® tape (100% coverage) with a Tinned Copper (TC) braid (60% coverage) for noise protection.
• A Blue PVC - Polyvinyl Chloride jacket provides environmental suitability for Indoor, Outdoor, and Sunlight Resistance.
• UL Voltage Rating: 300 V (CM, CL2), 300 V (UL AWM 2464).

Belden 9463 J22U Applications

• Use it in harsh environment installations where industrial communications cabling is required.
• Support Allen Bradley Data Highway communication interface connections between PLC processors, I/O devices, operator interfaces, computers, and other intelligent devices.
• Deploy it in PLC processor interlocking setups where reliable communication links are needed.
• Apply it in peer-to-peer messaging networks to help exchange data between devices.
• Use it for remote programming tasks where access to connected equipment is required.
• Support troubleshooting activities by providing a communication path for diagnostics.
• Use it for I/O updates where ongoing device-to-controller communication is required.
