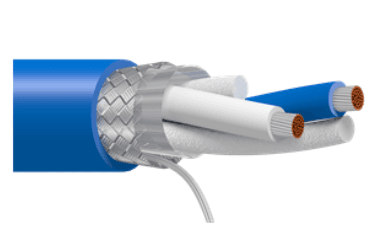

Belden 9463F J22, Twinax Blue Hose Cable 20 AWG PE PVC
Description
Belden 9463F J22 Blue Hose® is a high-flex twinax cable designed for Data Highway Plus communications in robotic and harsh-environment installations. It features 1 pair 20 AWG (42x36) TC - Tinned Copper conductors with PE - Polyethylene insulation in Clear & Blue, plus an overall Beldfoil® + Tinned Copper Braid(85%) shield. A Blue PVC - Polyvinyl Chloride outer jacket supports indoor use and includes CM and AWM 2464 ratings. Electrical characteristics include 78 Ohm nominal characteristic impedence and published attenuation values from 1 MHz through 400 MHz.
Belden 9463F J22 Key Features
- High-flex twinax cable construction for Data Highway Plus communications in robotic and harsh-environment installations.
- 1 pair 20 AWG (42x36) TC - Tinned Copper conductors with PE - Polyethylene insulation and Clear & Blue color code.
- Overall shield: Beldfoil® + Tinned Copper Braid(85%) with shield type: both, braid over foil.
- Blue PVC - Polyvinyl Chloride outer jacket with CM and AWM 2464 ratings for indoor routing.
- Nom. characteristic impedence: 78 Ohm.
Belden 9463F J22 Applications
- Designed for robotic and harsh environment installations where Data Highway Plus communications are required.
- Supports Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices.
- Used for PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, and I/O updates.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Coax construction | Twinaxial |
| Coax Type | Twinaxial |
| Number of pairs | 1 |
| Conductor size | 20 AWG |
| Stranding | 42x36 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PE - Polyethylene |
| Nom. insulation thickness | 0.0185 in (0.470 mm) |
| Nom. insulation diameter | 0.075 in (1.9 mm) |
| Color Code | Clear & Blue |
| Notes | Twinax with rod fillers |
| Tape shield material | Bi-Laminate (Alum+Poly) |
| Tape coverage | 100% |
| Braid shield material | Tinned Copper (TC) |
| Braid coverage | 85% |
| Flooded | No not flooded over braid |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket Color | Blue |
| Nom. jacket thickness | 0.033 in (0.84 mm) |
| Nom. diameter | 0.243 in (6.17 mm) |
| Overall cable diameter (nominal) | 0.243 in (6.17 mm) |
| Nom. conductor DCR | 9.5 Ohm/1000ft (31 Ohm/km) |
| Nom. capacitance cond-to-cond | 19.7 pF/ft (64.6 pF/m) |
| Nom. capacitance (Cond-to-Shield) | 37 pF/ft (120 pF/m) |
| Nom. delay | 1.47 ns/ft |
| Nom. inductance | 0.12 µH/ft (0.39 µH/m) |
| Nom. velocity of prop. | 66% |
| High frequency (nominal/typical) | 1 MHz: 0.6 dB/100ft; 10 MHz: 2.1 dB/100ft; 50 MHz: 5.0 dB/100ft; 100 MHz: 7.5 dB/100ft; 200 MHz: 11.0 dB/100ft; 400 MHz: 16.0 dB/100ft |
| UL Voltage Rating | 300 V (CM, Cl2) |
| UL temperature | 80°C |
| Operating | -40°C to 80°C |
| Stationary min. bend radius | 2.5 in (64 mm) |
| Installation min. bend radius | 2.5 in |
| Max Pull Tension | 40 lbs (18 kg) |
| Bulk cable weight | 34 lbs/1000ft (51 kg/km) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL1685 UL Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 725, Article 800, CM, CL2 |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CM |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other standard compliance(s) | P-7K-SC-182141-MSHA |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 9463F J22100; 9463F J22250; 9463F J22500; 9463F J221000 |
| Priced Per | FT |
