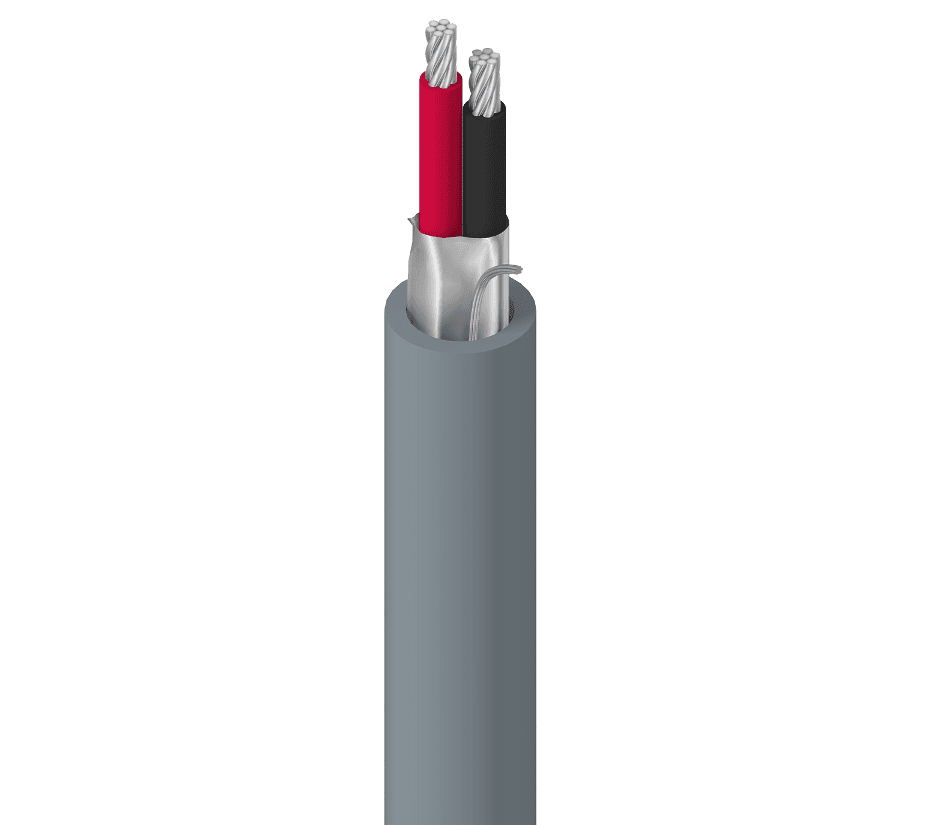

Belden 9464 060U, Multi Pair Cable 1 Pair 20 AWG PE PVC Jacket

Belden 9464 060U is a 1 pair, 20 AWG multi-conductor cable for low-voltage signal and control applications. It features 2 stranded 20 AWG (7x28) TC - Tinned Copper conductors with PE - Polyethylene insulation, plus an overall shield and drain for noise rejection. A PVC - Polyvinyl Chloride outer jacket and NEC / UL compliance: Article 800, CM support general-purpose installations such as panel wiring, computer communication, and line level audio.

Belden 9464 060U Key Features

• 1 pair construction with 2 stranded 20 AWG (7x28) TC - Tinned Copper conductors for low-voltage signal and control wiring.
• Overall shield & drain using tape with Bi-Laminate (Alum+Poly) and 100% coverage to help reduce noise in signal paths.
• Drainwire type: 20 AWG (7x28) TC for a consistent shield termination point.
• PE - Polyethylene insulation and a PVC - Polyvinyl Chloride outer jacket for general-purpose cable construction.
• NEC / UL compliance: Article 800, CM and UL voltage rating: 300 V for specified installation and electrical requirements.

Belden 9464 060U Applications

• Use it for automatic stripping equipments where consistent handling and termination are needed.
• Support low voltage analog signals (4-20ma, 0-10v, ...) in signal and control circuits.
• Handle low voltage digital control (24v, …) for common control and automation signaling.
• Choose it for line level audio connections where signal integrity is important.
• Install it in computer communication wiring where shielded signal cabling is required.
• Apply it to panel wiring for general-purpose control and signal distribution.

Belden™ and all associated trademarks are the property of their respective owners.
