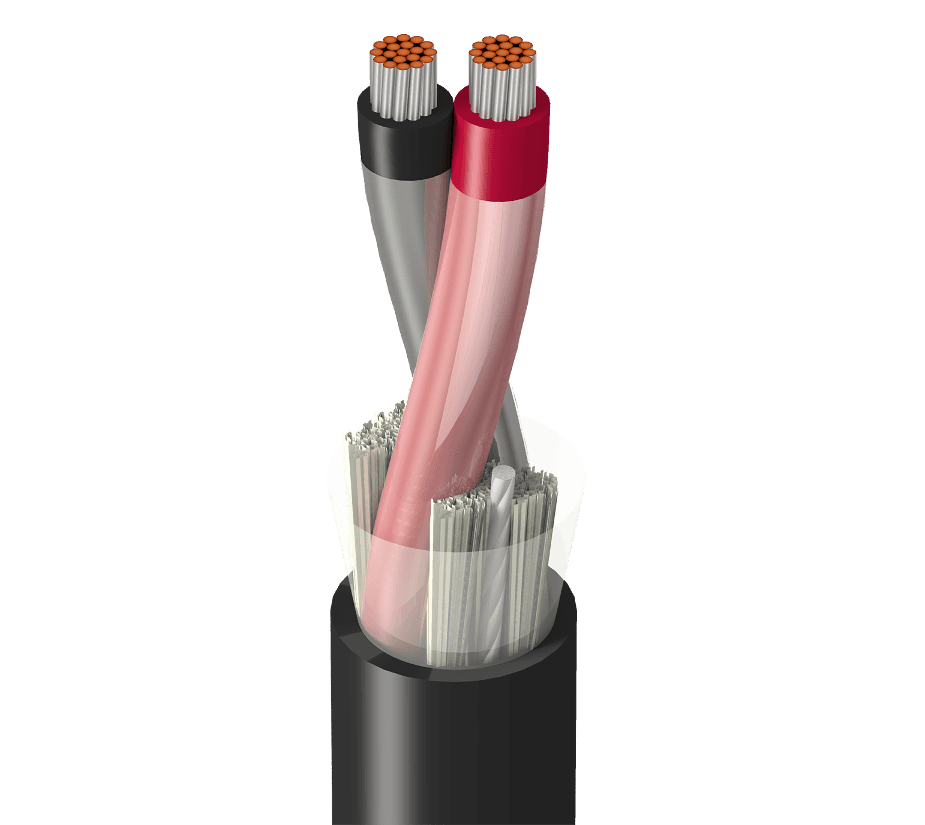

Belden 9487 010, Power Limited Tray Cable 1 Pair 16 AWG 600V PVC, Black Jacket
Description
Belden 9487 010 is a VNTC control instrumentation cable with 1 pair (2 conductor) of 16 AWG stranded (19x29) TC - tinned copper conductors. It uses PVC/Nylon - Polyvinyl Chloride + Nylon insulation and a black PVC - Polyvinyl Chloride outer jacket. This unshielded, power limited tray cable is rated 600 V (TC), 150 V (NPLF) and includes a ripcord for easier jacket removal. It is described for control and instrumentation signals such as 4-20ma and 0-10v in industrial control environments, including raceways, cable trays, and ducts.
Belden 9487 010 Key Features
- 1 pair (2 conductor) construction with 16 AWG stranded (19x29) TC - tinned copper conductors.
- PVC/Nylon - Polyvinyl Chloride + Nylon insulation with black, red color code.
- Black PVC - Polyvinyl Chloride outer jacket with ripcord: Yes for easier jacket removal.
- Shield: Unshielded.
- UL voltage rating: 600 V (TC), 150 V (NPLF).
- UL temperature: 90°C dry, 90°C wet.
- NEC / UL compliance: Article 336, Article 760, NPLF, TC.
Belden 9487 010 Applications
- Supports industrial control wiring for control and instrumentation signals such as 4-20ma and 0-10v.
- Installs in raceways, cable trays, and ducts for organized routing in control environments.
- Fits digital control and low voltage digital control (24v, …) signal connections in control systems.
- Connects instruments and related signal devices in control circuits.
- Works in distributed control system (DCS) and programmable logic controller (PLC) installations.
- Pairs with encoders and other feedback devices in control circuits.
- Commonly applied for solenoids, valves, actuators, and positioners in control systems.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Elements | Pair(s) |
| No. of elements | 1 |
| Conductor Type | Stranded |
| Earth/ground wires | No |
| Armor | No |
| Composite | No |
| Product type | VNTC Control |
| Insulation nom. thickness | 0.022 in (0.56 mm) |
| Nom. insulation diameter | 0.101 in (2.57 mm) |
| Jacket nom. thickness | 0.048 in (1.2 mm) |
| Nom. diameter | 0.295 in (7.49 mm) |
| Overall cable diameter (nominal) | 0.295 in (7.49 mm) |
| Bulk cable weight | 51 lbs/1000ft |
| Nom. conductor DCR | 4.45 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 26 pF/ft (85 pF/m) |
| Nom. inductance | 0.15 μH/ft (0.49 μH/m) |
| Max. current | 6.2 Amps per Conductor at 25°C |
| Operating | -30°C to +90°C Dry, 75°C wet |
| Bend radius (stationary min.) | 1.2 in (30 mm) |
| Bend radius (installation min.) | 1.2 in (30 mm) |
| Max Pull Tension | 70 lbs (32 kg) |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| Flammability / reaction to fire | UL 1685 UL Loading, IEEE 1202, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
