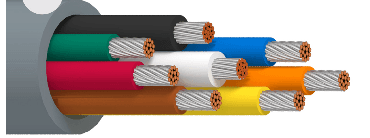

Belden 9505 060, Multi Conductor Computer Cable 5 Pair 24 AWG PVC
SKU:Belden 9505 060
● In stock
Description
Belden 9505 060 is a multi-pair computer EIA RS-232 Cable designed for low-voltage signal transmission in control and communications wiring. It features 5 twisted pairs of 24 AWG stranded (7x32) TC - Tinned Copper conductors with SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation, plus an overall Beldfoil® shield with 100% coverage. A 24 AWG (7x32) TC drain wire supports termination, and the PVC - Polyvinyl Chloride jacket in Chrome is intended for indoor use. Key electrical and compliance details include UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464) and Operating temperature: -30°C to +80°C.
Belden 9505 060 Key Features
- 5 twisted pairs support multi-pair signal wiring in control and communications circuits.
- 24 AWG stranded (7x32) TC - Tinned Copper conductors are specified for the cable’s signal conductors.
- Overall Beldfoil® shield with 100% coverage helps reduce noise in low-voltage signal transmission.
- A 24 AWG (7x32) TC drain wire is included to support termination.
- A PVC - Polyvinyl Chloride jacket in Chrome is specified for indoor installations.
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464).
- Operating temperature: -30°C to +80°C.
Belden 9505 060 Applications
- Use in RS-232 applications where multi-pair signal wiring is needed for control and communications connections.
- Install in computer communications wiring to carry low-voltage signals between connected equipment.
- Low voltage analog signals (4-20ma, 0-10v, ...) are typical in control and communications wiring where consistent signal transmission is required.
- Low voltage digital control (24v, …) is supported in control wiring setups that rely on low-voltage signal transmission.
- Apply in line level audio wiring where low-voltage signal transmission is required.
- Use in panel wiring applications that benefit from a multi-pair construction intended for organized control and communications wiring inside panels.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | multi-pair computer EIA RS-232 Cable |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Nom. insulation thickness | 0.011 in (0.28 mm) |
| Nom. insulation diameter | 0.044 in (1.1 mm) |
| Pair color code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow |
| Nom. jacket thickness | 0.032 in (0.81 mm) |
| Overall cable diameter (nominal) | 0.289 in (7.34 mm) |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Nom. conductor DCR | 28.8 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance (Cond-to-other) | 50 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 75 Ohm |
| Nom. velocity of prop. | 60% |
| Max. current | 2.2 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 16.19 Ohm/1000ft (53.12 Ohm/km) |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 2.9 in (74 mm) |
| Bend radius (installation min.) | 2.9 in (74 mm) |
| Max Pull Tension | 60 lbs (27 kg) |
| Bulk cable weight | 40 lbs/1000ft |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464, AWM I/II A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Plenum number | 89505, 82505 |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 9505 060100 UPC 612825254324; 9505 060250; 9505 060500 UPC 612825254348; 9505 0601000 UPC 612825254331 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
