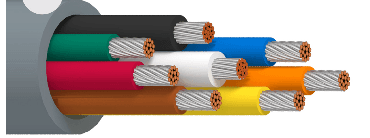

Belden 9505 060U, Multi Conductor Computer Cable 5 Pair 24 AWG PVC
SKU:Belden 9505 060U1000
● In stock
Description
Belden 9505 060U is a multi-pair computer EIA RS-232 cable designed for reliable signal transmission in RS-232 applications, computer communications, and low voltage analog and digital control. It features 5 twisted pairs of 24 AWG stranded (7x32) TC - Tinned Copper conductors with SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation. An overall Beldfoil® shield with 100% coverage plus a 24 AWG (7x32) TC drain wire helps reduce noise in electrically busy environments. The cable is finished with a PVC - Polyvinyl Chloride jacket in Chrome.
Belden 9505 060U Key Features
- 5 twisted pairs support multi-pair signal wiring in a single cable.
- 24 AWG stranded (7x32) TC - Tinned Copper conductors are specified for consistent electrical performance.
- SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation is used on the conductors.
- Overall Beldfoil® shield with 100% coverage plus a 24 AWG (7x32) TC drain wire helps reduce noise.
- PVC - Polyvinyl Chloride jacket in Chrome provides outer protection and identification.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- UL temperature: 80°C.
- Operating temperature: -30°C to +80°C.
- Environmental suitability: indoor.
Belden 9505 060U Applications
- Supports RS-232 applications where reliable signal transmission is required.
- Enables computer communications links that use multi-pair signal wiring.
- Suitable for low voltage analog signals (4-20ma, 0-10v, ...).
- Appropriate for low voltage digital control (24v, …).
- Works for line level audio signal runs.
- Fits indoor panel wiring.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 5 |
| Conductor size | 24 AWG |
| Conductor stranding | 7x32 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Nom. insulation thickness | 0.011 in (0.28 mm) |
| Nom. insulation diameter | 0.044 in (1.1 mm) |
| Pair color code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow |
| Outer shield type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 24 AWG (7x32) TC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.032 in (0.81 mm) |
| Nom. cable diameter | 0.289 in (7.34 mm) |
| Jacket Color | Chrome |
| Nom. conductor DCR | 28.8 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 75 Ohm |
| Nom. velocity of prop. | 60% |
| Max. current | 2.2 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 16.19 Ohm/1000ft (53.12 Ohm/km) |
| Bend radius (stationary min.) | 2.9 in (74 mm) |
| Bend radius (installation min.) | 2.9 in (74 mm) |
| Max Pull Tension | 60 lbs (27 kg) |
| Bulk cable weight | 40 lbs/1000ft |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| NEC / UL compliance | Article 800, CMG |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2464, AWM I/II A |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Plenum number | 89505, 82505 |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 9505 060U1000 UPC 612825254300 |
| Priced Per | FT |
