Belden 9513 060, Power Limited Tray Cable 3PR 22 AWG 300V PVC, Chrome Jacket
Description

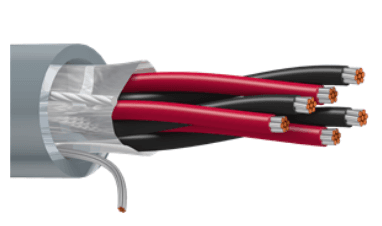

Belden 9513 060 is an instrumentation Power Limited Tray Cable (PLTC) built with 3 pair 22 AWG (7x30) TC - Tinned Copper conductors and an overall Beldfoil® shield. It features PVC - Polyvinyl Chloride insulation with ICEA Chart E2 color coding and a PVC - Polyvinyl Chloride outer jacket in Chrome. This cable is rated 300 V (PLTC, CMG) and is specified for -30°C to +105°C operating temperature with Sunlight Resistance for Indoor/Outdoor environments.
Belden 9513 060 Key Features
- Instrumentation Power Limited Tray Cable (PLTC) construction with 3 pair conductors for multi-signal runs.
- 22 AWG (7x30) TC - Tinned Copper conductors.
- Overall Beldfoil® shield with tape construction, Bi-Laminate (Alum+Poly) material, and 100% coverage.
- PVC - Polyvinyl Chloride insulation with ICEA Chart E2 color code.
- PVC - Polyvinyl Chloride outer jacket with jacket color: Chrome.
- UL voltage rating: 300 V (PLTC, CMG).
- Operating temperature: -30°C to +105°C; UL temperature: 105°C; temperature table notes: AWM 80°C.
- Environmental suitability includes Indoor/Outdoor use and Sunlight Resistance.
Belden 9513 060 Applications
- Use for instrumentation connections where multiple paired signals are routed together.
- Integrate with sensors, valves, and positioners in control and monitoring setups.
- Carry typical control signals such as 4-20mA and 0-10V.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 3 |
| Element type | pair(s) |
| Insulation thickness (nom.) | 0.017 in (0.43 mm) |
| Insulation diameter (nom.) | 0.062 in (1.6 mm) |
| Drainwire type | 22 AWG (7x30) TC |
| Outer jacket separator | Cotton Serve |
| Outer jacket thickness (nom.) | 0.042 in (1.1 mm) |
| Overall cable diameter (nominal) | 0.327 in (8.31 mm) |
| Ripcord | Yes |
| Bulk cable weight | 46 lbs/1000ft |
| Nom. conductor DCR | 18.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 26 pF/ft (85 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 45 pF/ft (150 pF/m) |
| Nom. inductance | 0.21 µH/ft (0.69 µH/m) |
| Max. current | 3.4 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 11.54 Ohm/1000ft (37.86 Ohm/km) |
| Stationary min. bend radius | 3.3 in (84 mm) |
| Installation min. bend radius | 3.3 in (84 mm) |
| Max Pull Tension | 63 lbs (29 kg) |
| Flammability / reaction to fire | UL 1685 UL Loading, FT4, T-29-520, IEEE 1202 |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Other Part Numbers | 9513 060100; 9513 060250; 9513 060500 UPC 612825254720; 9513 0601000 UPC 612825254706; 9513 0605000 UPC 612825254737 |
| Priced Per | FT |
