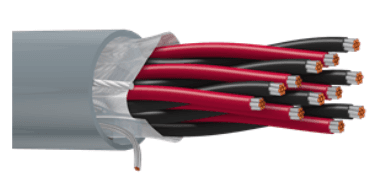

Belden 9516 060, Power Limited Tray Cable 6PR 22 AWG 300V PVC, Chrome Jacket

Belden 9516 060 is an instrumentation PLTC cable with 6 pair 22 AWG (7x30) TC - Tinned Copper conductors and a PVC - Polyvinyl Chloride jacket. It features PVC - Polyvinyl Chloride insulation with a Black, Red and Numbered color code, plus an overall tape shield with 100% coverage and a 22 AWG (7x30) TC drainwire type. The cable is rated 300 V (PLTC, CMG) with UL temperature 105°C and an operating temperature of -30°C to +105°C. A ripcord is included for easier jacket removal, and the jacket color is Chrome.

Belden 9516 060 Key Features

• 6 pair 22 AWG (7x30) TC - Tinned Copper conductors for instrumentation and control wiring.
• PVC - Polyvinyl Chloride insulation with Black, Red and Numbered identification.
• Overall tape shield with 100% coverage and Bi-Laminate (Alum+Poly) material, plus a 22 AWG (7x30) TC drainwire type.
• PVC - Polyvinyl Chloride jacket with Ripcord: Yes and Jacket Color: Chrome.
• UL Voltage Rating: 300 V (PLTC, CMG).
• UL temperature: 105°C; Operating temperature: -30°C to +105°C.

Belden 9516 060 Applications

• Use in instrumentation installations where multiple paired conductors are needed for control and measurement circuits.
• Support sensors that require consistent signal transmission in electrically demanding environments.
• Connect valves and positioners in control systems where shielded instrumentation wiring is used to help reduce noise.
• Run 4-20mA signal loops in instrumentation and control circuits.
• Handle 0-10V signal wiring in measurement and control applications.
