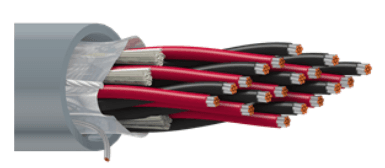

Belden 9520 060, Power Limited Tray Cable 18C 22 AWG 300V PVC, Chrome Jacket
Description
Belden 9520 060 is an instrumentation PLTC cable for industrial control, digital control, and distributed control systems. It is built with 9 twisted pairs of 22 AWG (7x30) TC - Tinned Copper conductors and PVC - Polyvinyl Chloride insulation. For noise protection, it includes an overall Beldfoil® tape shield with 100% coverage and a 22 AWG (7x30) TC drainwire. The PVC - Polyvinyl Chloride outer jacket includes a ripcord, and the cable is rated 300 V (PLTC) with Indoor, Outdoor, Sunlight Resistance suitability.
Belden 9520 060 Key Features
- Instrumentation PLTC cable designed for industrial control, digital control, and distributed control systems.
- 9 twisted pairs of 22 AWG (7x30) TC - Tinned Copper conductors for multi-pair signal and control wiring.
- Overall Beldfoil® tape shield with 100% coverage and Bi-Laminate (Alum+Poly) material for noise protection.
- PVC - Polyvinyl Chloride outer jacket with ripcord for easier installation.
- 300 V (PLTC) UL voltage rating.
- Environmental suitability: Indoor, Outdoor, Sunlight Resistance.
Belden 9520 060 Applications
- Use it in industrial control systems where multiple signal pairs are needed for instrumentation and control circuits.
- Install it in raceways, cable trays, and ducts for organized routing in control and instrumentation runs.
- Choose it for digital control and distributed control systems where shielded instrumentation cabling is required.
- Apply it for instruments (4-20ma, 0-10v, ...) and related signal wiring.
- Use it for low voltage digital control (24v, …) connections in control circuits.
- Deploy it for encoder connections and other control-circuit signal runs.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor count | 9 Pair(s) |
| Conductor size | 22 |
| Stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. thickness (insulation) | 0.017 in (0.43 mm) |
| Nom. insulation diameter | 0.062 in (1.6 mm) |
| Color Code | Black, Red and Numbered |
| Outer shield type | Tape |
| Outer shield material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 22 AWG (7x30) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Nom. thickness (jacket) | 0.053 in (1.3 mm) |
| Nom. diameter | 0.482 in (12.2 mm) |
| Ripcord | Yes |
| Jacket Color | Chrome |
| Armor | No |
| Nom. conductor DCR | 18.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 26 pF/ft (85 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 45 pF/ft (150 pF/m) |
| Nom. inductance | 0.21 µH/ft (0.69 µH/m) |
| Max. current | 2.4 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 2 Ohm/1000ft (6.6 Ohm/km) |
| UL temperature | 105°C |
| Operating | -30°C To +105°C |
| Stationary min. bend radius | 4.82 in (122 mm) |
| Installation min. bend radius | 4.82 in (122 mm) |
| Max Pull Tension | 172 lbs (78.0 kg) |
| Bulk cable weight | 112 lbs/1000ft |
| Flammability / reaction to fire | UL 1685 FT4 loading, FT4, T-29-520, IEEE 1202 FT4 |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Other Part Numbers | 9520 060100; 9520 060250; 9520 060500 UPC 612825254898; 9520 0601000 UPC 612825254881 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
