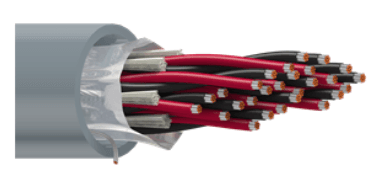

Belden 9521 060, Power Limited Tray Cable 11PR 22 AWG 300V PVC, Chrome Jacket

Belden 9521 060 is an instrumentation PLTC cable designed for industrial control, digital control, and low voltage signal applications. It is built with 11 twisted pairs of 22 AWG (7x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket. For noise protection, it includes an overall Beldfoil® tape shield with 100% coverage and a 22 AWG (7x30) TC drainwire. It is rated 300 V (AWM 2464) with an operating range of -30°C to +105°C and is suitable for indoor, outdoor, sunlight resistance environments.

Belden 9521 060 Key Features

• It features 11 twisted pairs (Number of elements: 11; Element type: pair(s)) for multi-signal instrumentation and control wiring.
• It uses 22 AWG (7x30) stranded TC - Tinned Copper conductors (Conductor type: stranded conductor) for flexible installation.
• It includes an overall Beldfoil® tape shield (Outer shield type: tape; Outer shield material: Bi-Laminate (Alum+Poly); Coverage: 100%) with a 22 AWG (7x30) TC drainwire for noise protection.
• It has PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket, with Ripcord: Yes for easier pulling and handling.
• It is rated UL Voltage Rating: 300 V (AWM 2464) and Operating: -30°C to +105°C for a wide operating range.
• It is suitable for indoor, outdoor, sunlight resistance environments.

Belden 9521 060 Applications

• Use it in industrial control systems where multiple low voltage signals need to be routed through a single cable.
• Support digital control and distributed control wiring where organized pair construction helps manage signal runs.
• Install it in raceways, cable trays, and ducts to route control and signal wiring through industrial spaces.
• Apply it for instruments (4-20ma, 0-10v, ...) where consistent signal transmission is required.
• Use it in low voltage digital control (24v, …) circuits for control and monitoring connections.
• Connect it with encoders where signal wiring is needed between devices and control equipment.
• Select it for control circuits that require a shielded instrumentation cable for signal and control interconnects.
