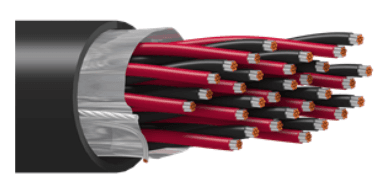

Belden 9524 060, Power Limited Tray Cable 15PR 22 AWG 300V PVC, Chrome Jacket
SKU:Belden 9524 060
● In stock
Description
Belden 9524 060 is an instrumentation PLTC for industrial control, digital control, and low voltage signal applications. It is built with 15 twisted pairs of 22 AWG (7x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and an overall Beldfoil® shield for noise reduction. The cable has a PVC - Polyvinyl Chloride outer jacket with ripcord for installation in raceways, cable trays, and ducts. It is rated 300 V (AWM 2464) and operates from -30°C to +105°C, with environmental suitability listed as indoor, outdoor, sunlight resistance.
Belden 9524 060 Key Features
- 15 twisted pairs using 22 AWG (7x30) stranded conductors in TC - Tinned Copper.
- PVC - Polyvinyl Chloride insulation with Black & Red and Numbered color code.
- Overall Beldfoil® shield with 100% coverage and a 22 AWG (7x30) TC drainwire.
- PVC - Polyvinyl Chloride outer jacket with ripcord.
- Rated 300 V (AWM 2464) with an operating range of -30°C to +105°C.
Belden 9524 060 Applications
- Designed for industrial control and control circuits where instrumentation PLTC is specified.
- Supports digital control and distributed control wiring in industrial systems.
- Used for low voltage signal applications such as instruments (4-20ma, 0-10v, ...) and low voltage digital control (24v, …).
- Suitable for encoder connections in control and automation setups.
- Intended for installation in raceways, cable trays, and ducts.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 15 |
| Element type | pair(s) |
| Conductor Type | stranded conductor |
| Insulation thickness (nom.) | 0.017 in (0.43 mm) |
| Insulation diameter (nom.) | 0.062 in (1.6 mm) |
| Jacket thickness (nom.) | 0.053 in (1.3 mm) |
| Overall cable diameter (nominal) | 0.593 in |
| Jacket Color | Chrome |
| Armor | No |
| Outer shield type | Tape |
| Outer shield material | Bi-Laminate (Alum+Poly) |
| Shield | Yes - this has a Shield |
| Inner shield | No Shield |
| Shield Type | Overall aluminum mylar Foil Shield |
| Nom. conductor DCR | 18.61 Ohm/1000ft |
| Nom. outer shield DCR | 15 Ohm/1000ft (49 Ohm/km) |
| Nom. capacitance cond-to-cond | 26 pF/ft (85 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 45 pF/ft (150 pF/m) |
| Nom. inductance | 0.21 µH/ft (0.69 µH/m) |
| Max. current | 2.4 Amps per Conductor at 25ºC |
| UL temperature | 105°C |
| Stationary min. bend radius | 5.93 in (151 mm) |
| Installation min. bend radius | 5.93 in |
| Max Pull Tension | 280 lbs (130 kg) |
| Bulk cable weight | 162 lbs/1000ft |
| Flammability / reaction to fire | UL1685 FT4 Loading, FT4, T-29-520, IEEE 1202 FT4 |
| NEC / UL compliance | Article 725, Article 727, Article 800 |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Other Part Numbers | 9524 060100; 9524 060250; 9524 060500 UPC 612825254935; 9524 0601000 UPC 612825254928 |
| Priced Per | FT |
