Belden 9526 060, Power Limited Tray Cable 19PR 22 AWG 300V PVC, Chrome Jacket

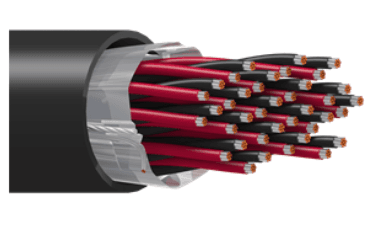

Belden 9526 060 is an instrumentation PLTC cable built with 19 twisted pairs of 22 AWG (7x30) TC - Tinned Copper conductors and PVC - Polyvinyl Chloride insulation. It includes an overall Beldfoil® shield and a PVC - Polyvinyl Chloride outer jacket with ripcord in Chrome. This cable is rated 300 V (AWM 2464) and supports 2.4 Amps per Conductor at 25ºC. It is described for industrial control and low voltage digital control applications in raceways, cable trays, and ducts.

Belden 9526 060 Key Features

• 19 twisted pairs of 22 AWG (7x30) TC - Tinned Copper conductors for instrumentation and control wiring.
• PVC - Polyvinyl Chloride insulation with Black & Red and Numbered color code.
• Overall Beldfoil® shield with tape outer shield (Bi-Laminate (Alum+Poly)) and 100% coverage.
• 22 AWG (7x30) TC drainwire type for the outer shield.
• PVC - Polyvinyl Chloride outer jacket with ripcord and Chrome jacket color.
• UL voltage rating: 300 V (AWM 2464).
• Max. current: 2.4 Amps per Conductor at 25ºC.
• Operating: -30°C to +105°C; UL temperature: 105°C.
• Environmental suitability: Indoor, Outdoor, Sunlight Resistance.

Belden 9526 060 Applications

• Used for industrial control and digital control circuits where instrumentation and control signals are routed through a multi-pair cable.
• Installs in raceways, cable trays, and ducts for organized cable routing in industrial environments.
• Works with instruments (4-20ma, 0-10v, ...) used in monitoring and control systems.
• Intended for low voltage digital control (24v, …) signal distribution in control systems.
• Commonly used with encoders where control and signal connections are required.
• Fits distributed control circuits and other control circuits that benefit from an overall shield for noise reduction.
