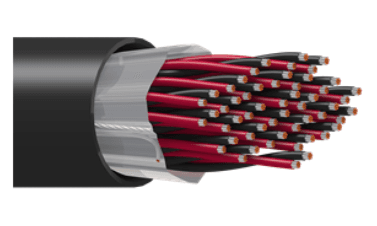

Belden 9527 060, Power Limited Tray Cable 27PR 22 AWG 300V PVC, Chrome Jacket

Belden 9527 060 is an instrumentation PLTC cable for industrial control, digital control, and distributed control applications in raceways, cable trays, and ducts. It features 27 pair 22 AWG (7x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and an overall Beldfoil® shield for noise protection. This cable is rated 300 V (PLTC) with a UL temperature of 105°C and an operating range of -30°C to +105°C. The PVC - Polyvinyl Chloride outer jacket includes a ripcord and comes in a Chrome jacket color.

Belden 9527 060 Key Features

• Instrumentation PLTC design for industrial control, digital control, and distributed control applications.
• 27 pair construction with 22 AWG (7x30) TC - Tinned Copper conductors.
• PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket.
• Overall Beldfoil® shield with 100% coverage for noise protection.
• Rated 300 V (PLTC) with a UL temperature of 105°C and an operating range of -30°C to +105°C.
• Ripcord included for easier installation.
• Chrome jacket color.

Belden 9527 060 Applications

• Use it in industrial control systems where instrumentation wiring is needed.
• Install it in raceways, cable trays, and ducts.
• Support digital control applications where multiple pairs are required for control and signal distribution.
• Connect instruments (4-20ma, 0-10v, ...) where signal wiring is required.
• Apply it in low voltage digital control (24v, …) circuits.
• Use it for encoder connections where control and signal wiring is needed.
• Fit it into control circuits that require organized multi-pair instrumentation cabling.
• Deploy it in distributed control applications where signals are routed across control systems.
