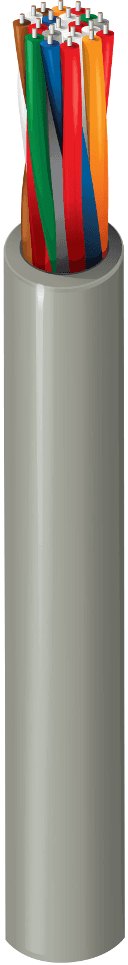

Belden 9570 060, Multi Conductor Cable 10C 24 AWG PVC PVC Chrome

Belden 9570 060 is an Audio, Control & Instrument Cable with 24 AWG solid tinned copper conductors in 10 twisted pairs, insulated with PVC - Polyvinyl Chloride and protected by a PVC - Polyvinyl Chloride jacket in Chrome. It is specified with UL Voltage Rating: 300 V (CMG), 150 V (AWM 2576) and UL temperature: 80°C, with an operating temperature range of -20°C to +80°C. Electrical performance includes 32.8 Ohm/1000ft DCR, 22 pF/ft (72 pF/m) capacitance, and 1 Amp per Conductor at 20ºC.

Belden 9570 060 Key Features

• Audio, Control & Instrument Cable design with 10 twisted pairs for organized signal and control wiring.
• 24 AWG solid TC - Tinned Copper conductors with PVC - Polyvinyl Chloride insulation.
• PVC - Polyvinyl Chloride outer jacket in Chrome for cable protection in low voltage signal and control installations.
• UL Voltage Rating: 300 V (CMG), 150 V (AWM 2576).
• UL temperature: 80°C; operating temperature: -20°C to +80°C.
• Nom. Conductor DCR: 32.8 Ohm/1000ft; Nom. capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Max. current: 1 Amp per Conductor at 20ºC.

Belden 9570 060 Applications

• Commonly used in telephone cables where multiple pairs are needed for low voltage signal distribution.
• Supports low voltage analog signals (4-20ma, 0-10v, ...) in audio, control, and instrument installations.
• Suitable for low voltage control (24v, …) circuits in control and signal wiring setups.
• Used in voice communications wiring where consistent low voltage signal transmission is required.
