Belden 9843 060, Low Capacitance RS 485 Cable 24 AWG Shielded PVC, Chrome Jacket
SKU:Belden 9843 060
● In stock
Description

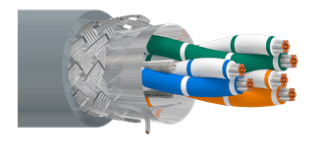

Belden 9843 060 is a low capacitance RS-485 cable designed for serial communication in noisy environments and over long distances. It is built with 3 twisted pairs of 24 AWG (7x32) TC - Tinned Copper conductors with PE - Polyethylene insulation. For EMI/RFI protection, it uses an overall Beldfoil®+Tinned Copper Braid(90%) shield with 100% tape coverage. The PVC - Polyvinyl Chloride outer jacket is Chrome and rated for indoor installations with NEC / UL compliance: Article 800, CM.
Belden 9843 060 Key Features
- Low capacitance RS-485 cable construction intended for reliable serial communication in noisy environments and over long distances.
- 3 twisted pairs of 24 AWG (7x32) TC - Tinned Copper conductors for consistent signal transmission.
- Overall Beldfoil®+Tinned Copper Braid(90%) shield with 100% tape coverage to support EMI/RFI protection.
- PVC - Polyvinyl Chloride jacket in Chrome for indoor installations and general-purpose CM applications.
Belden 9843 060 Applications
- Use for RS-485 and POS connections where dependable serial communication is required.
- Support computer communications links that rely on stable data transmission.
- Fit serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.
- Suit low voltage analog signals (4-20ma, 0-10v, ...).
- Handle low voltage digital control (24v, …).
- Run line level audio signal runs.
- Serve panel wiring in control and communication setups.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Pairs | 3 |
| Conductor size | 24 AWG |
| Stranding | 7x32 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PE - Polyethylene |
| Insulation thickness (nom.) | 0.022 in (0.56 mm) |
| Insulation diameter (nom.) | 0.068 in (1.7 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe |
| Overall shield | Overall Beldfoil®+Tinned Copper Braid(90%) Shield |
| Tape shield material | Bi-Laminate (Alum+Poly) |
| Tape coverage | 100% |
| Drainwire type | 24 AWG (7x32) TC |
| Braid shield material | Tinned Copper (TC) |
| Braid coverage | 90% |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Color | Chrome |
| Jacket thickness (nom.) | 0.035 in (0.89 mm) |
| Cable diameter (nom.) | 0.360 in (9.14 mm) |
| Conductor DCR (nom.) | 24 Ohm/1000ft |
| Outer shield DCR (nom) | 2.3 Ohm/1000ft (7.5 Ohm/km) |
| Capacitance, Cond-to-Cond (nom.) | 12.8 pF/ft (42.0 pF/m) |
| Capacitance, Cond-to-other (nom.) | 23 pF/ft (75 pF/m) |
| Characteristic impedence (nom.) | 120 Ohm |
| Delay (nom.) | 1.6 ns/ft |
| Velocity of prop. (nom.) | 66% |
| Max. current | 1.54 Amps per Conductor at 25ºC |
| Insertion loss (nom.) | 0.6 dB/100ft at 1 MHz |
| UL Voltage Rating | 300 V (CM), 30 V (UL AWM 2919) |
| Operating temperature | -30°C to +80°C |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 3.75 in (95.3 mm) |
| Bend radius (installation min.) | 3.75 in (95.3 mm) |
| Max Pull Tension | 105.5 lbs (47.85 kg) |
| Bulk cable weight | 62 lbs/1000ft |
| Environmental suitability | Indoor |
| NEC / UL compliance | Article 800, CM |
| CEC / C(UL) compliance | CM |
| AWM compliance | AWM 2919 |
| Flammability / reaction to fire | UL 1685 UL Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 9843 060100, 9843 060250, 9843 060500, 9843 0601000 |
| Priced Per | FT |
