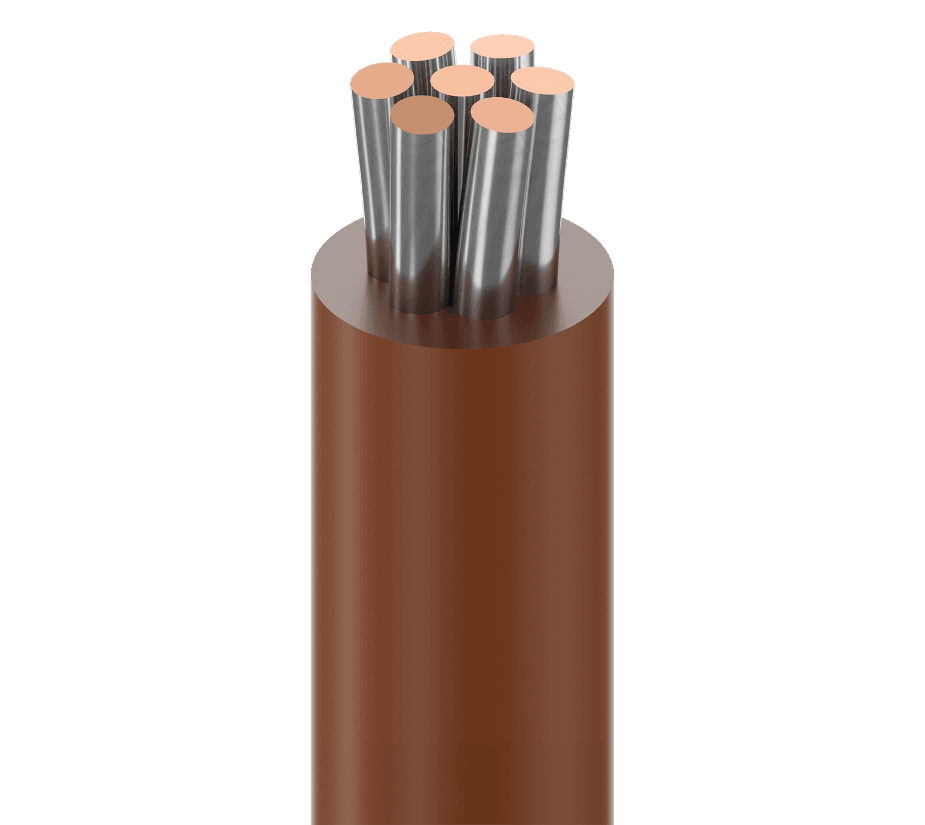

Belden 9921 002, Hook Up Wire 1C 22 AWG Tinned Copper PVC
Description
Belden 9921 002 is a low temp plastic lead wire for internal wiring in electronic and electrical equipment. It is a 1-conductor 22 AWG (7x30) TC - Tinned Copper wire with PVC - Polyvinyl Chloride insulation for inter-connection circuits. This hook up wire is rated 105°C and 300 V RMS, with a max current of 11 A for a single conductor in free air @ 30ºC.
Belden 9921 002 Key Features
- 1-conductor 22 AWG (7x30) TC - Tinned Copper construction for internal wiring and inter-connection circuits.
- PVC - Polyvinyl Chloride insulation for flexible, dependable inter-connection circuits.
- UL temperature rating of 105°C.
- UL voltage rating of 300 V RMS.
- Max. current: single conductor in free air @ 30ºC: 11 A.
- Flammability / reaction to fire: VW-1.
- Environmental suitability: indoor.
Belden 9921 002 Applications
- Use it for inter-connection circuits where reliable internal wiring is needed in electronic and electrical equipment.
- Choose it for internal wiring of computer and electronic equipments.
- Install it for internal wiring of appliances.
- Apply it in other general internal wiring applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.017 in (0.43 mm) |
| Insulation diameter (nom.) | 0.062 in (1.6 mm) |
| Overall cable diameter (nom.) | 0.062 in (1.6 mm) |
| Nom. conductor DCR | 18.1 Ohm/1000ft |
| Bulk cable weight | 4 lbs/1000ft |
| Nom. insertion loss (attenuation) | 6.2 dB/100m; 6.1 dB/100m |
| Typical unbalanced FEXT % | 6.2 MHz |
| Operating temperature | -20°C To +105°C |
| Stationary min. bend radius | 0.62 in (16 mm) |
| Installation min. bend radius | 0.62 in (16 mm) |
| Max Pull Tension | 9 lbs (4.1 kg) |
| AWM compliance | AWM 1007, AWM 1569 |
| CEC / C(UL) compliance | TRSR-64 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
