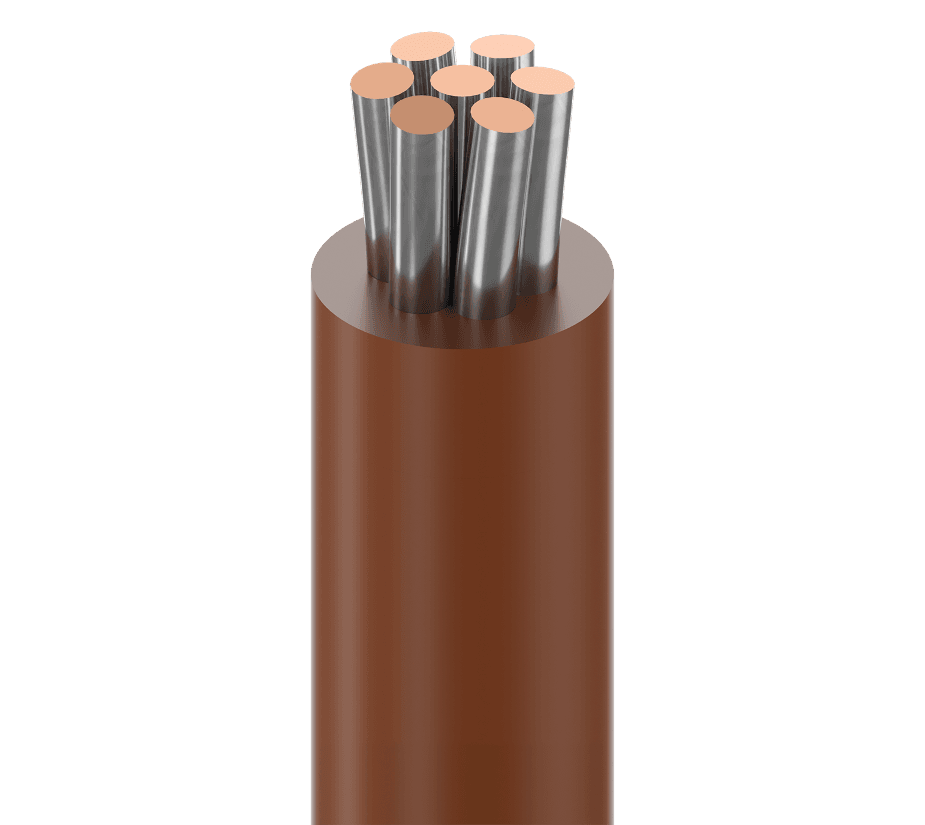

Belden 9921 003, Hook Up Wire 1C 22 AWG Tinned Copper PVC
Description
Belden 9921 003 is a low temp plastic lead wire with a 22 AWG (7x30) TC - Tinned Copper conductor and PVC - Polyvinyl Chloride insulation. This hook up wire is rated 105°C and 300 V RMS, with AWM 1007 and AWM 1569 compliance for electronic and electrical equipment applications. It meets VW-1 flammability requirements for indoor use and is designed for inter-connection circuits and internal wiring in computer, electronic, and appliance equipment.
Belden 9921 003 Applications
- Supports inter-connection circuits that require internal wiring within electronic and electrical equipment.
- Used for internal wiring in computer and electronic equipments to connect components within an enclosure.
- Works well for internal wiring of appliances where dependable internal connections are needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Wire type | low temp plastic lead wire |
| Number of Conductors | 1 |
| Conductor size | 22 AWG |
| Stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.017 in (0.43 mm) |
| Nom. insulation diameter | 0.062 in (1.6 mm) |
| Overall cable diameter (nominal) | 0.062 in (1.6 mm) |
| UL Voltage Rating | 300 V RMS |
| Nom. conductor DCR | 18.1 Ohm/1000ft |
| Max. current | Single conductor in free air @ 30ºC: 11 A |
| Nom. insertion loss (attenuation) | 6.2 dB/100m; 6.1 dB/100m |
| Typical unbalanced FEXT % | 6.2 MHz |
| UL temperature | 105°C |
| Operating temperature | -20°C to +105°C |
| Bend radius (stationary min.) | 0.62 in (16 mm) |
| Bend radius (installation min.) | 0.62 in (16 mm) |
| Max Pull Tension | 9 lbs (4.1 kg) |
| Bulk cable weight | 4 lbs/1000ft |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | VW-1 |
| AWM compliance | AWM 1007, AWM 1569 |
| CEC / C(UL) compliance | TRSR-64 |
| Sustainability | CA Prop 65 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
