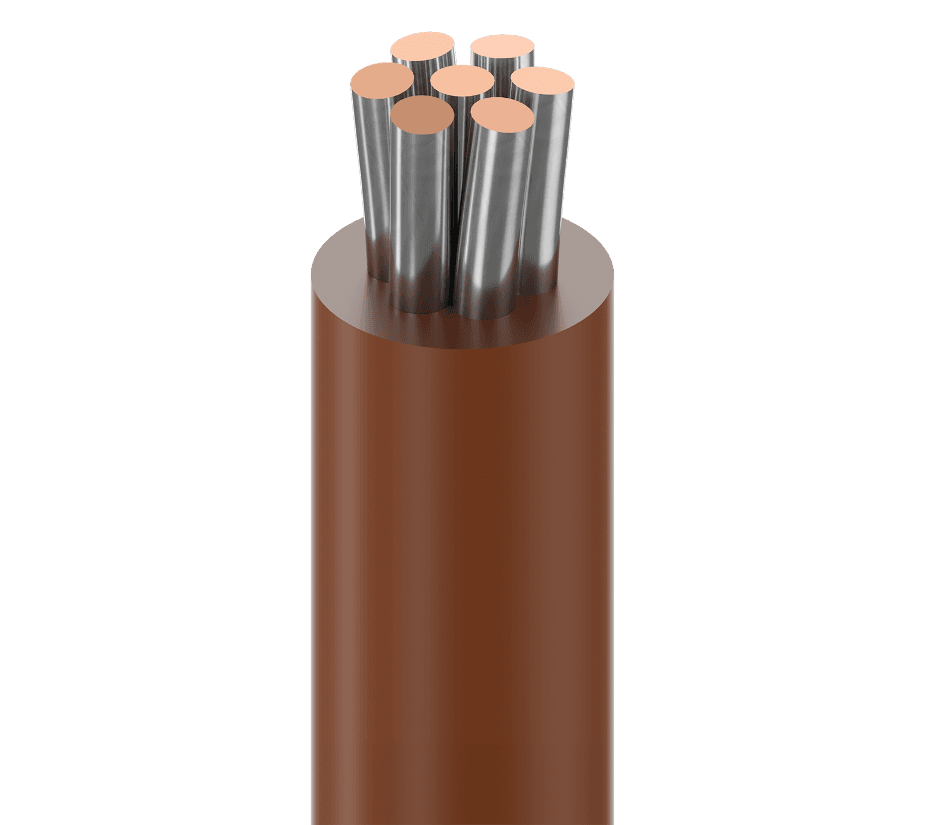

Belden 9921 007, Hook Up Wire 1C 22 AWG Tinned Copper PVC
Description
Belden 9921 007 is a low temp plastic lead wire for internal wiring in electronic and electrical equipment. It features 1-conductor 22 AWG (7x30) TC - Tinned Copper with PVC - Polyvinyl Chloride insulation to support flexible routing in inter-connection circuits and appliance wiring. This hook up wire is rated 105°C and 300 V RMS, with a max current of 11 A for a single conductor in free air @ 30ºC. It meets VW-1 flammability and includes AWM 1007 and AWM 1569 compliance.
Belden 9921 007 Key Features
- Low temp plastic lead wire designed for dependable internal wiring in electronic and electrical equipment.
- 1-conductor 22 AWG (7x30) TC - Tinned Copper construction for internal wiring and inter-connection circuits.
- PVC - Polyvinyl Chloride insulation supports flexible routing in inter-connection circuits and appliance wiring.
- Rated 105°C and 300 V RMS.
- Max current: single conductor in free air @ 30ºC: 11 A.
- Flammability / reaction to fire: VW-1.
- AWM compliance: AWM 1007, AWM 1569.
Belden 9921 007 Applications
- Use in inter-connection circuits that require dependable internal wiring in electronic and electrical equipment.
- Commonly used for internal wiring of computer and electronic equipments.
- Works well for internal wiring of appliances where flexible routing is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 1 |
| Conductor size | 22 AWG |
| Stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.017 in (0.43 mm) |
| Nom. insulation diameter | 0.062 in (1.6 mm) |
| Overall cable diameter (nominal) | 0.062 in (1.6 mm) |
| Bulk cable weight | 4 lbs/1000ft |
| Nom. conductor DCR | 18.1 Ohm/1000ft |
| Nom. insertion loss (attenuation) | 6.2 dB/100m; 6.1 dB/100m |
| Typical unbalanced FEXT % | 6.2 MHz |
| Operating temperature | -20°C To +105°C |
| Bend radius (stationary min.) | 0.62 in (16 mm) |
| Bend radius (installation min.) | 0.62 in (16 mm) |
| Max Pull Tension | 9 lbs (4.1 kg) |
| Environmental suitability | Indoor |
| CEC / C(UL) compliance | TRSR-64 |
| Sustainability | CA Prop 65 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
