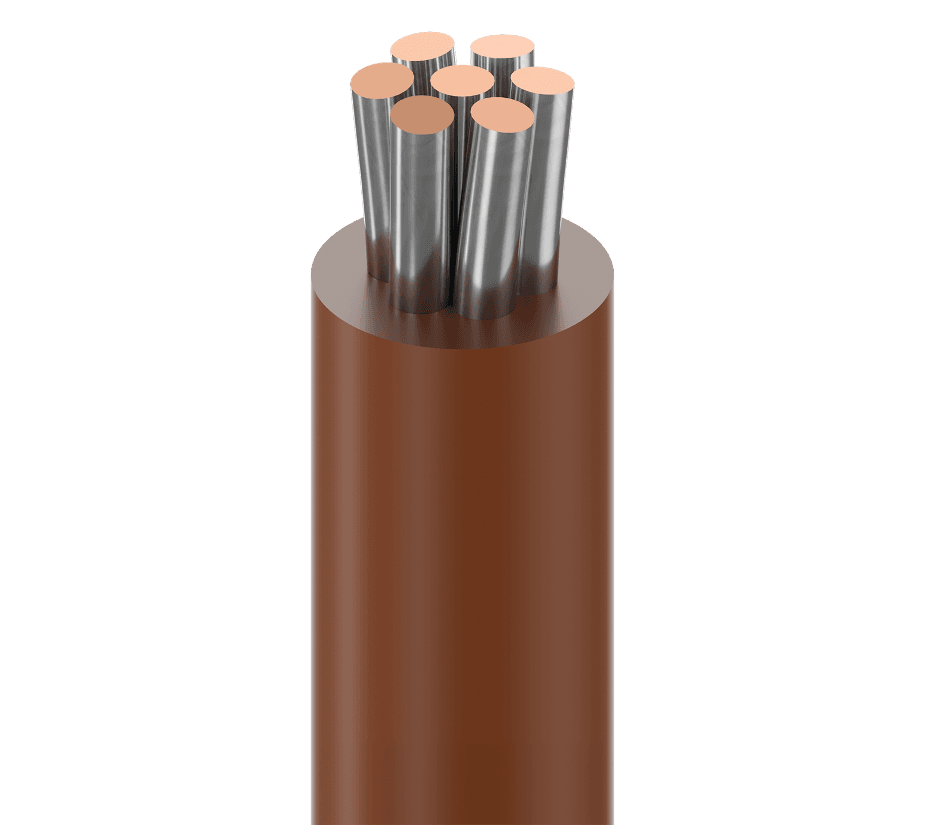

Belden 9921 008, Hook Up Wire 1C 22 AWG Tinned Copper PVC
Description
Belden 9921 008 is a low temp plastic lead wire with a 22 AWG (7x30) TC - Tinned Copper conductor and PVC - Polyvinyl Chloride insulation for internal wiring. This hook up wire is rated 300 V RMS and 105°C, with a nominal overall cable diameter of 0.062 in (1.6 mm) for routing in compact spaces. It supports compliance requirements including VW-1 flammability and AWM 1007, AWM 1569.
Belden 9921 008 Key Features
- 22 AWG (7x30) TC - Tinned Copper conductor for consistent internal wiring connections.
- PVC - Polyvinyl Chloride insulation for durable equipment wiring.
- 300 V RMS UL voltage rating for inter-connection circuits and internal wiring.
- 105°C UL temperature rating for higher-temperature internal wiring environments.
- VW-1 flammability and AWM compliance: AWM 1007, AWM 1569.
Belden 9921 008 Applications
- Used for inter-connection circuits where internal equipment wiring is required.
- Supports internal wiring in computer and electronic equipments to connect components within the device.
- Works for internal wiring of appliances where insulated lead wire is needed inside the unit.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 1 |
| Nom. insulation thickness | 0.017 in (0.43 mm) |
| Nom. insulation diameter | 0.062 in (1.6 mm) |
| Nom. conductor DCR | 18.1 Ohm/1000ft |
| Bulk cable weight | 4 lbs/1000ft |
| Max. current | Single Conductor in free air @ 30ºC: 11 A |
| Nom. insertion loss (attenuation) | 6.2 dB/100m; 6.1 dB/100m |
| Typical unbalanced FEXT % | 6.2 MHz |
| Operating temperature | -20°C To +105°C |
| Stationary min. bend radius | 0.62 in (16 mm) |
| Installation min. bend radius | 0.62 in (16 mm) |
| Max Pull Tension | 9 lbs (4.1 kg) |
| Environmental suitability | Indoor |
| CEC / C(UL) compliance | TRSR-64 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
