Belden 9L26010 008H, 9L260XX 10C 26 AWG Stranded PVC Flat Ribbon Gray
Description

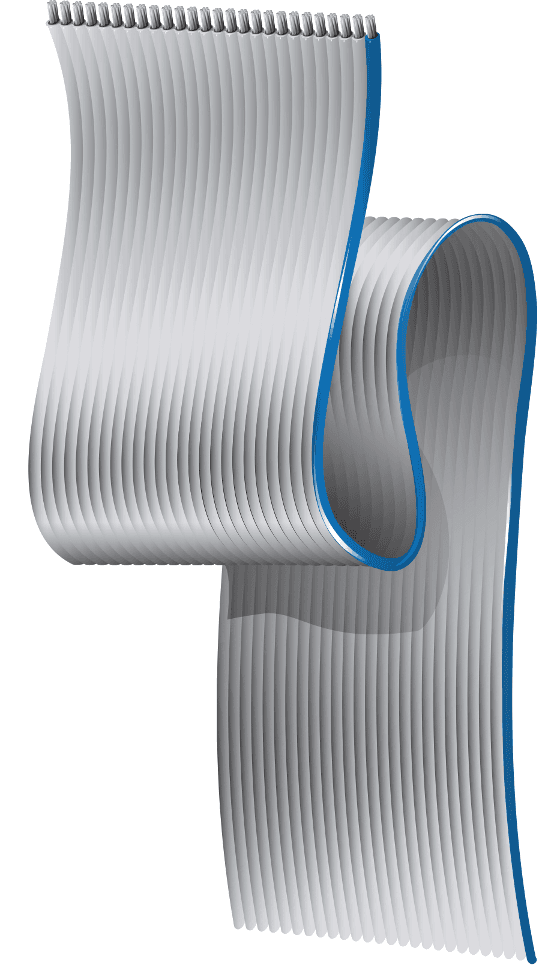

Belden 9L26010 008H is a flat gray ribbon cable with .050 pitch and 10 conductors for internal interconnection and internal wiring of electronic equipment. It features 26 AWG (7x34) TC - Tinned Copper conductors with PVC - Polyvinyl Chloride insulation, plus a blue stripe over the first conductor for easy identification. Designed for indoor use, it meets VW-1 flammability and carries a 300 V UL voltage rating.
Belden 9L26010 008H Key Features
- .050 pitch flat gray ribbon cable with 10 conductors for organized multi-conductor routing.
- 26 AWG (7x34) TC - Tinned Copper conductors with PVC - Polyvinyl Chloride insulation.
- A blue stripe over the first conductor supports fast, consistent conductor identification.
- Designed for indoor use and meets VW-1 flammability.
- 300 V UL voltage rating for internal wiring applications.
- Supports reliable mass-termination to standard IDC connectors.
Belden 9L26010 008H Applications
- Use it for internal interconnection where multiple conductors need to be routed together inside electronic equipment.
- For internal wiring of electronic equipment, it helps organize signal and power paths within assemblies.
- Mass-terminate to standard IDC connectors for efficient, repeatable terminations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Series | 9L260XX Series |
| Construction | Standard flat, ie gray etc |
| Jacketed | Cable has no jacket |
| Shield | No, cable has no shield |
| Insulation thickness (nom.) | 0.010 in (0.25 mm) |
| Insulation diameter (nom.) | 0.038 in (0.97 mm) |
| Color Code | Gray |
| Conductor spacing center-center | .050 +/- .002 in |
| Conductor spacing center-center outside | .450 +/- .006 in |
| Bulk cable weight | 16 lbs/1000ft |
| Nom. conductor DCR | 43 Ohm/1000ft |
| Nom. characteristic impedence | 135 Ohm; 90 Ohm |
| Nom. delay | 1.48 ns/ft |
| Nom. velocity of prop. | 68% |
| Max. current | 1.5 Amps per Conductor at 20ºC |
| Nom. capacitance cond-to-cond | 23 pF/ft (75 pF/m); 11 pF/ft (36 pF/m); 18 pF/ft (59 pF/m) |
| Nom. inductance | 0.23 µH/ft (0.75 µH/m); 0.15 µH/ft (0.49 µH/m) |
| Unbalanced crosstalk (10 ft. sample length) | Typical unbalanced NEXT % 5.2; typical unbalanced FEXT % 6.2; typical cross talk pulse rise time 3 ns; Typical unbalanced NEXT % 4.2; typical unbalanced FEXT % 5; typical cross talk pulse rise time 5 ns; Typical unbalanced NEXT % 3.3; typical unbalanced FEXT % 3.8; typical cross talk pulse rise time 7 ns |
| High frequency (nominal/typical) | 10 MHz: 3.9 dB/100ft; 20 MHz: 6.4 dB/100ft; 30 MHz: 8.7 dB/100ft; 40 MHz: 13 dB/100ft; 50 MHz: 16.9 dB/100ft; 60 MHz: 20.1 dB/100ft; 70 MHz: 22.5 dB/100ft; 80 MHz: 23.9 dB/100ft; 90 MHz: 25.1 dB/100ft; 100 MHz: 26.4 dB/100ft |
| High frequency notes | GS=Ground-Signal Mode; GSG=Ground-Signal-Ground Mode |
| UL temperature | 105°C |
| Operating temperature | -40°C to +105°C |
| Installation min. bend radius | 2.0 in (51 mm) |
| Environmental suitability | Indoor |
| AWM compliance | AWM 2651, AWM 1/11, A |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
