Belden 9L26016 008H, 16C 26 AWG Stranded PVC Ribbon Gray
SKU:Belden 9L26016 008H
● In stock
ft
Description

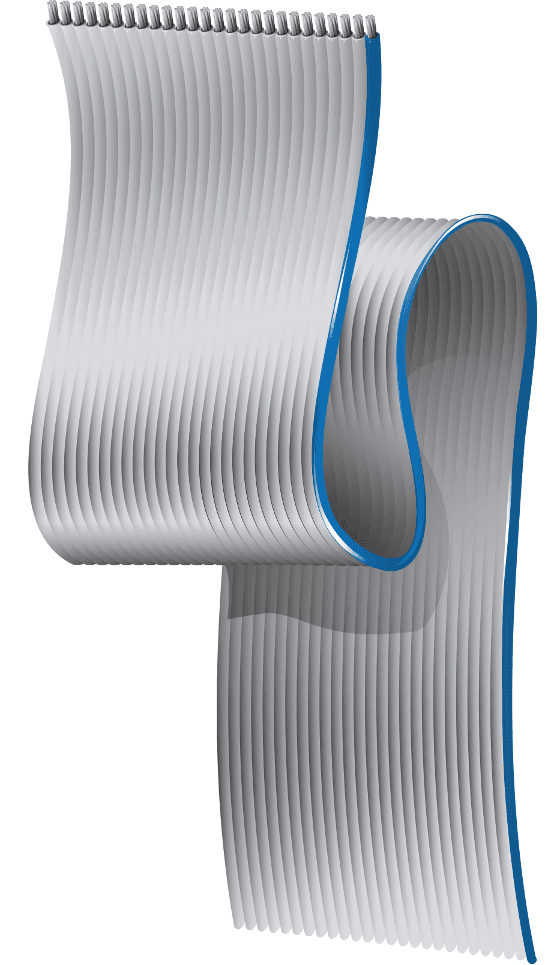

Belden 9L26016 008H is a flat gray ribbon cable from the 9L260XX Series designed for internal interconnection and internal wiring of electronic equipment. It features 16 conductors on a .050 +/- .002 in pitch for reliable mass-termination to standard IDC connectors. The 26 AWG (7x34) TC - Tinned Copper conductors with PVC - Polyvinyl Chloride insulation are rated 300 V and 105°C for general-purpose electronic interconnect use in indoor environments.
Belden 9L26016 008H Key Features
- Flat gray ribbon cable from the 9L260XX Series designed for internal interconnection and internal wiring of electronic equipment.
- 16 conductors on a .050 +/- .002 in pitch to support reliable mass-termination to standard IDC connectors.
- 26 AWG (7x34) TC - Tinned Copper conductors with PVC - Polyvinyl Chloride insulation.
- Rated 300 V and 105°C.
- Indoor environmental suitability with VW-1 flammability / reaction to fire.
Belden 9L26016 008H Applications
- Supports internal interconnection where multiple conductors need to be routed together inside electronic equipment.
- Designed for internal wiring of electronic equipment in indoor environments.
- Enables reliable mass-termination to standard IDC connectors for efficient multi-conductor connections.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Flat gray ribbon cable |
| Series | 9L260XX Series |
| Number of Conductors | 16 |
| Conductor spacing center-center | .050 +/- .002 in |
| Conductor spacing center-center outside | .750 +/- .008 in |
| Jacket | Cable has no jacket |
| Shielding | No, cable has no shield |
| Conductor size | 26 AWG |
| Stranding | 7x34 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. thickness | 0.010 in (0.25 mm) |
| Nom. insulation diameter | 0.038 in (0.97 mm) |
| Color Code | Gray |
| Notes | A blue stripe over the first conductor |
| Nom. conductor DCR | 43 Ohm/1000ft |
| Nom. characteristic impedence | 135 Ohm; 90 Ohm |
| Nom. capacitance cond-to-cond | 23 pF/ft (75 pF/m); 11 pF/ft (36 pF/m); 18 pF/ft (59 pF/m) |
| Nom. delay | 1.48 ns/ft |
| Nom. inductance | 0.23 µH/ft (0.75 µH/m); 0.15 µH/ft (0.49 µH/m) |
| Nom. velocity of prop. | 68% |
| Max. current | 1.5 Amps per conductor at 20ºC |
| Unbalanced crosstalk (10 ft. sample length) | Typical unbalanced NEXT %: 5.2; typical unbalanced FEXT %: 6.2; typical cross talk pulse rise time: 3 ns; Typical unbalanced NEXT %: 4.2; typical unbalanced FEXT %: 5; typical cross talk pulse rise time: 5 ns; Typical unbalanced NEXT %: 3.3; typical unbalanced FEXT %: 3.8; typical cross talk pulse rise time: 7 ns |
| High frequency (nominal/typical) | 10 MHz: 3.9 dB/100ft; 20 MHz: 6.4 dB/100ft; 30 MHz: 8.7 dB/100ft; 40 MHz: 13 dB/100ft; 50 MHz: 16.9 dB/100ft; 60 MHz: 20.1 dB/100ft; 70 MHz: 22.5 dB/100ft; 80 MHz: 23.9 dB/100ft; 90 MHz: 25.1 dB/100ft; 100 MHz: 26.4 dB/100ft |
| High frequency notes | GS=Ground-Signal Mode; GSG=Ground-Signal-Ground Mode |
| Operating temperature | -40°C to +105°C |
| Installation min. bend radius | 2.07 in (52.6 mm) |
| Bulk cable weight | 25 lbs/1000ft |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | VW-1 |
| AWM compliance | AWM 2651, AWM 1/11, A |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
