Belden 9L28010 008H, Flat Gray Ribbon 10C 28 AWG Stranded PVC
SKU:Belden 9L28010 008H
● In stock
ft
Description

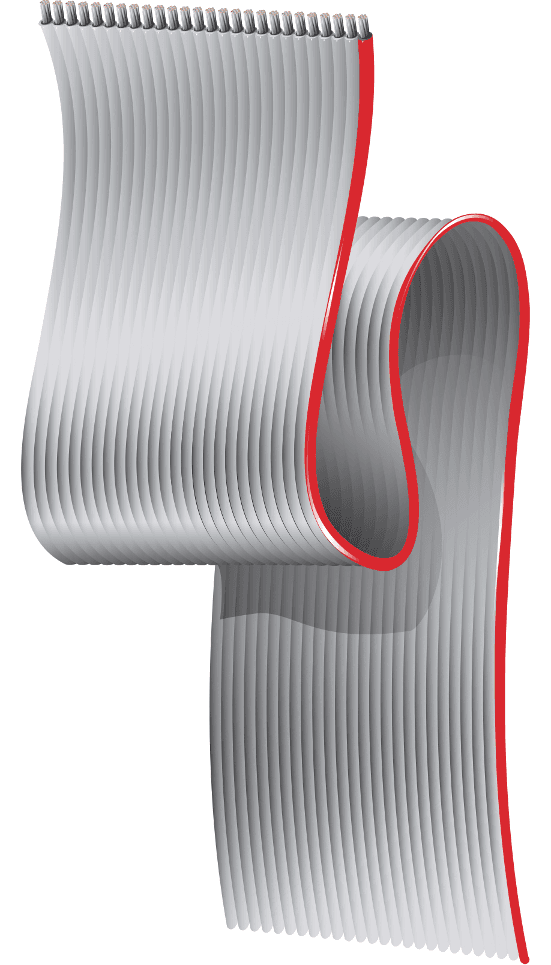

Belden 9L28010 008H is a flat gray ribbon cable with 10 conductors of 28 AWG (7x36) tinned copper and PVC insulation for indoor electronic equipment wiring. Built on a .050 pitch, it supports clean, space-saving internal interconnections and mass-termination to standard IDC connectors. The gray insulation includes a red stripe over the first conductor to simplify orientation during installation. It supports 300 V and operates from -40°C to +105°C.
Belden 9L28010 008H Key Features
- Flat gray ribbon cable on a .050 pitch for space-saving internal interconnections.
- 10 conductors of 28 AWG (7x36) TC - tinned copper for dependable signal routing.
- PVC - Polyvinyl Chloride insulation with a red stripe over the first conductor for easier orientation.
- Designed for indoor use with a UL voltage rating of 300 V and an operating temperature of -40°C to +105°C.
- Supports mass-termination to standard IDC connectors.
Belden 9L28010 008H Applications
- Use it for internal interconnection where a flat ribbon format helps keep wiring organized and space-efficient.
- Choose it for internal wiring of electronic equipment in indoor environments.
- Rely on it for mass-termination to standard IDC connectors for consistent multi-conductor connections.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Series | 9L280XX Series |
| Nom. thickness | 0.010 in (0.25 mm) |
| Nom. insulation diameter | 0.035 in (0.89 mm) |
| Jacket | Cable has no jacket |
| Shield | No, cable has no shield |
| Conductor spacing center-center | .050 +/- .002 in |
| Conductor spacing center-center outside | .450 +/- .008 in |
| Nom. conductor DCR | 68.2 Ohm/1000ft |
| Max. current | 1 Amp per conductor at 20ºC |
| Bulk cable weight | 12 lbs/1000ft |
| Nom. characteristic impedence | 150 Ohm; 105 Ohm |
| Nom. capacitance cond-to-cond | 18 pF/ft (59 pF/m); 10 pF/ft (33 pF/m); 15 pF/ft (49 pF/m) |
| Nom. delay | 1.4 ns/ft |
| Nom. inductance | 0.29 µH/ft (0.95 µH/m); 0.2 µH/ft (0.66 µH/m) |
| Nom. velocity of prop. | 72% |
| Unbalanced crosstalk (10 ft. sample length) | Typical unbalanced NEXT % 4.8; typical unbalanced FEXT % 7; typical cross talk pulse rise time 3 ns; Typical unbalanced NEXT % 3.5; typical unbalanced FEXT % 4.7; typical cross talk pulse rise time 5 ns; Typical unbalanced NEXT % 3; typical unbalanced FEXT % 3; typical cross talk pulse rise time 7 ns |
| High frequency (nominal/typical) | 10 MHz: 2.8 dB/100ft; 20 MHz: 4.8 dB/100ft; 30 MHz: 6.5 dB/100ft; 40 MHz: 8.3 dB/100ft; 50 MHz: 9.8 dB/100ft; 60 MHz: 12 dB/100ft; 70 MHz: 13 dB/100ft; 80 MHz: 14 dB/100ft; 90 MHz: 15.8 dB/100ft; 100 MHz: 17 dB/100ft |
| High frequency notes | GS=Ground-Signal Mode; GSG=Ground-Signal-Ground Mode |
| Installation min. bend radius | 2.5 in (64 mm) |
| UL temperature | 105°C |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | VW-1 |
| AWM compliance | AWM 2651, AWM 1/11, A |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
