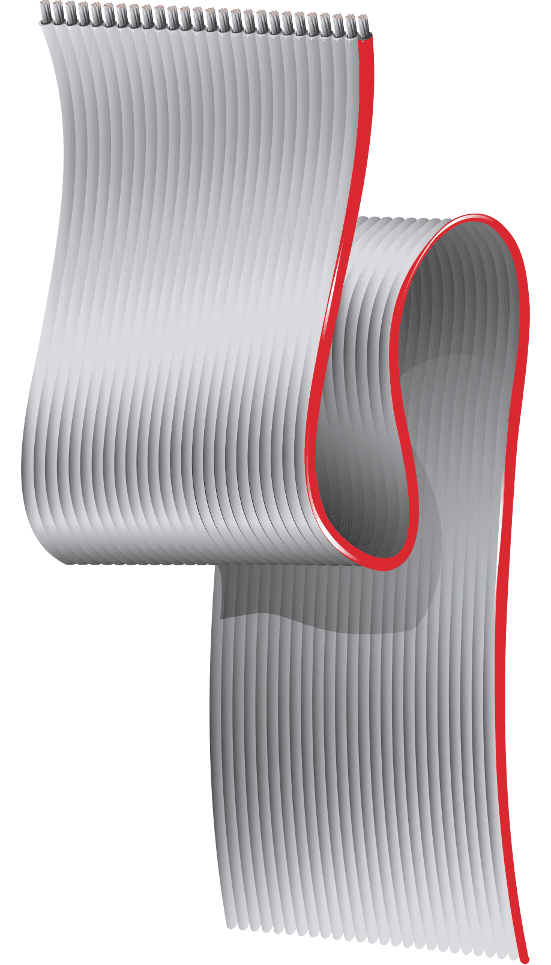

Belden 9L28016 008H, 9L280XX 16C 28 AWG Stranded PVC Gray Ribbon
SKU:Belden 9L28016 008H
● In stock
ft
Description
Belden 9L28016 008H is a flat gray ribbon cable in the 9L280XX Series with 16 conductors on a .050 pitch for internal interconnection and internal wiring of electronic equipment. It uses 28 AWG (7x36) TC - Tinned Copper conductors with PVC - Polyvinyl Chloride insulation and includes a red stripe over the first conductor for easy identification. This cable is rated 300 V, meets VW-1 flammability requirements, and is intended for indoor environments.
Belden 9L28016 008H Key Features
- Flat gray ribbon cable in the 9L280XX Series for organized internal wiring layouts.
- 16 conductors on a .050 pitch for consistent spacing in multi-conductor terminations.
- 28 AWG (7x36) TC - Tinned Copper conductors with PVC - Polyvinyl Chloride insulation.
- Red stripe over the first conductor to simplify identification during assembly.
- Rated 300 V and meets VW-1 flammability requirements for indoor use.
Belden 9L28016 008H Applications
- Use it for internal interconnection where multiple conductors need to be routed together inside electronic equipment.
- For internal wiring of electronic equipment, it helps keep wiring organized and easy to identify during assembly.
- It enables reliable mass-termination to standard IDC connectors for clean, repeatable terminations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Flat gray ribbon Cable |
| Series | 9L280XX Series |
| Number of Conductors | 16 |
| Conductor size | 28 AWG |
| Conductor stranding | 7x36 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. thickness | 0.010 in (0.25 mm) |
| Nom. insulation diameter | 0.035 in (0.89 mm) |
| Color | Gray |
| Identification | A Red Stripe over the first Conductor |
| Jacket | Cable has No Jacket |
| Shield | No, Cable has No Shield |
| Conductor spacing center-center | .050 +/- .002 in |
| Conductor spacing center-center outside | .750 +/- .008 in |
| Nom. conductor DCR | 68.2 Ohm/1000ft |
| Nom. delay | 1.4 ns/ft |
| Nom. velocity of prop. | 72% |
| Max. current | 1 Amp per Conductor at 20ºC |
| Nom. characteristic impedence | 150 Ohm; 105 Ohm |
| Nom. inductance | 0.29 µH/ft (0.95 µH/m); 0.2 µH/ft (0.66 µH/m) |
| Nom. capacitance cond-to-cond | 18 pF/ft (59 pF/m); 10 pF/ft (33 pF/m); 15 pF/ft (49 pF/m) |
| Unbalanced crosstalk (10 ft. sample length) | Typical unbalanced NEXT % 4.8; typical unbalanced FEXT % 7; typical cross talk pulse rise time 3 ns; Typical unbalanced NEXT % 3.5; typical unbalanced FEXT % 4.7; typical cross talk pulse rise time 5 ns; Typical unbalanced NEXT % 3; typical unbalanced FEXT % 3; typical cross talk pulse rise time 7 ns |
| High frequency (nominal/typical) | 10 MHz: 2.8 dB/100ft; 20 MHz: 4.8 dB/100ft; 30 MHz: 6.5 dB/100ft; 40 MHz: 8.3 dB/100ft; 50 MHz: 9.8 dB/100ft; 60 MHz: 12 dB/100ft; 70 MHz: 13 dB/100ft; 80 MHz: 14 dB/100ft; 90 MHz: 15.8 dB/100ft; 100 MHz: 17 dB/100ft |
| High frequency table notes | GSG=Ground-Signal-Ground Mode |
| UL temperature | 105°C |
| Operating temperature | -40°C to +105°C |
| Installation min. bend radius | 2.7 in (69 mm) |
| Bulk cable weight | 19 lbs/1000ft |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | VW-1 |
| AWM compliance | AWM 2651, AWM 1/11, A |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
