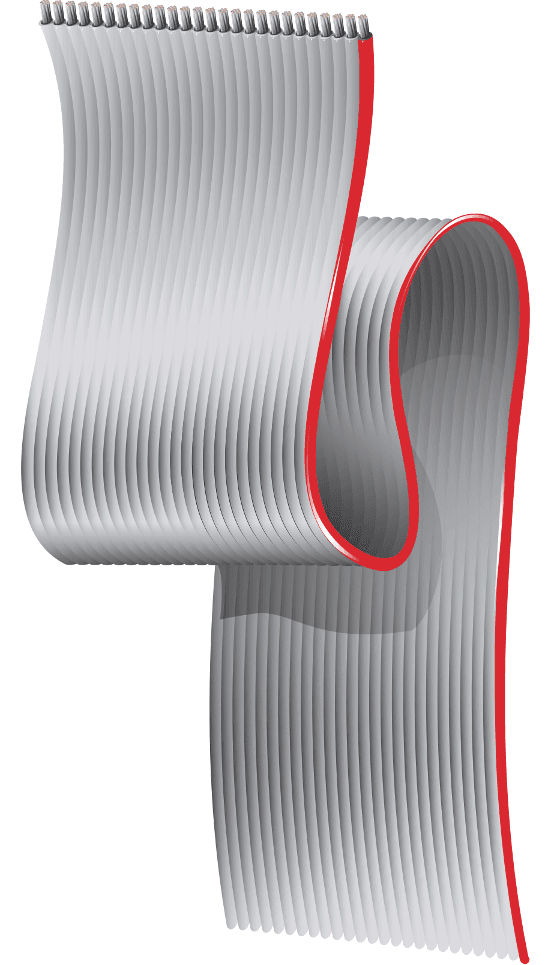

Belden 9L28020 008H, 9L280XX Flat Gray Ribbon 20C 28 AWG Stranded PVC

Belden 9L28020 008H is a 9L280XX Series flat gray ribbon cable for internal interconnection and internal wiring of electronic equipment. It is built with 20 conductors of 28 AWG (7x36) TC - Tinned Copper and PVC - Polyvinyl Chloride insulation, with a .050" pitch for consistent spacing. The first conductor is identified with a red stripe to support correct orientation during termination. It is rated 300 V, meets VW-1 flammability, and has an operating temperature range of -40°C to +105°C.

Belden 9L28020 008H Key Features

• Flat gray ribbon cable in the 9L280XX Series for internal interconnection and internal wiring of electronic equipment.
• 20 conductors of 28 AWG (7x36) TC - Tinned Copper with PVC - Polyvinyl Chloride insulation.
• .050" pitch supports consistent spacing for multi-conductor terminations.
• Designed for reliable mass-termination to standard IDC connectors.
• First conductor has a red stripe for easy identification.
• UL voltage rating: 300 V.
• UL flammability: VW-1.
• Operating temperature range: -40°C to +105°C.

Belden 9L28020 008H Applications

• Routes multiple conductors together for internal interconnection inside electronic equipment.
• Maintains organized conductor spacing for consistent termination in internal wiring of electronic equipment.
• Provides reliable mass-termination to standard IDC connectors for multi-conductor interconnect builds.
