Belden 9L28026 008H, 26 28 AWG Stranded PVC Gray Ribbon
SKU:Belden 9L28026 008H
● In stock
ft
Description

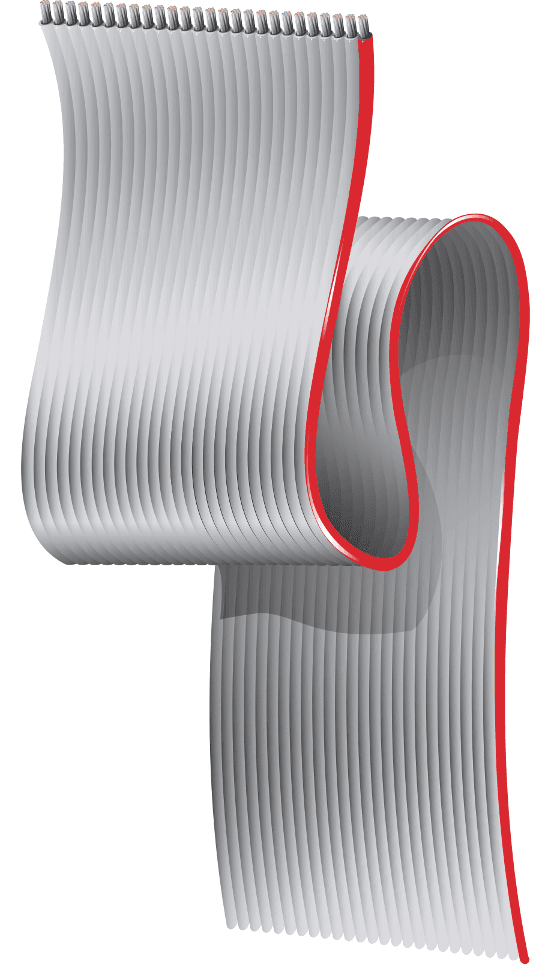

Belden 9L28026 008H is a flat gray ribbon cable in the 9L280XX Series with .050 Pitch, built with 26 conductors of 28 AWG (7x36) TC - Tinned Copper and PVC - Polyvinyl Chloride insulation. It has no jacket and no shield, and includes a first conductor with red stripe for identification. The cable carries a 300 V UL Voltage Rating, UL flammability VW-1, and an Operating Temperature Range of -40°C to +105°C. Electrical performance includes 150 Ohm (GS) / 105 Ohm (GSG) nominal characteristic impedance and 1.4 ns/ft nominal delay.
Belden 9L28026 008H Key Features
- Flat gray ribbon cable in the 9L280XX Series with .050" Pitch for organized internal routing.
- 26 conductors of 28 AWG (7x36) TC - Tinned Copper with PVC - Polyvinyl Chloride insulation.
- No shield construction and no jacket.
- First conductor has red stripe for quick conductor identification.
- 300 V UL Voltage Rating, UL flammability VW-1, and Operating Temperature Range: -40°C to +105°C.
- Nominal characteristic impedance: 150 Ohm (GS) and 105 Ohm (GSG), with nominal delay: 1.4 ns/ft.
Belden 9L28026 008H Applications
- Supports internal interconnection where a flat ribbon format helps keep wiring organized and space-efficient.
- Works well for internal wiring of electronic equipment in indoor environments.
- Enables reliable mass-termination to standard IDC connectors to streamline assembly and maintenance.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation wall thickness (nominal) | 0.010 in |
| Conductor spacing | .050 +/- .002 in |
| Conductor spacing center-center outside | 1.250 +/- .008 in |
| OuterJacket1, nominal width | 1.300 +/- .008 in |
| OuterJacket1, nom thick flat section | 0.035 in |
| Nominal conductor DCR | 68.2 Ohm/1000ft |
| Min insulation resistance | > 10,000 MOhm |
| Nominal velocity of propagation (VP) [%] | 72% |
| Max. recommended current [A] | 1 Amp per Conductor at 20ºC |
| Dielectric withstand voltage | 2000 V |
| Capacitance @ 1 kHz (GSG) | 18 pF/ft |
| Capacitance @ 1 MHz (GS) | 10 pF/ft |
| Capacitance @ 1 MHz (GSG) | 15 pF/ft |
| Inductance @ 1 MHz (GS) | 0.29 µH/ft |
| Inductance @ 1 MHz (GSG) | 0.2 µH/ft |
| Insertion loss @ 10 MHz | 2.8 dB/100ft |
| Insertion loss @ 20 MHz | 4.8 dB/100ft |
| Insertion loss @ 30 MHz | 6.5 dB/100ft |
| Insertion loss 40 MHz | 8.3 dB/100ft |
| Insertion loss @ 50 MHz | 9.8 dB/100ft |
| Insertion loss 60 MHz | 12 dB/100ft |
| Insertion loss 70 MHz | 13 dB/100ft |
| Insertion loss 80 MHz | 14 dB/100ft |
| Insertion loss 90 MHz | 15.8 dB/100ft |
| Insertion loss @ 100 MHz | 17 dB/100ft |
| Unbalanced crosstalk (10 ft. sample length) | Typical unbalanced NEXT % 4.8; Typical unbalanced FEXT % 7; Typical cross talk pulse rise time (ns) 3 ns; Typical unbalanced NEXT % 3.5; Typical unbalanced FEXT % 4.7; Typical cross talk pulse rise time (ns) 5 ns; Typical unbalanced NEXT % 3; Typical unbalanced FEXT % 3; Typical cross talk pulse rise time (ns) 7 ns |
| UL AWM style compliance | AWM 2651 |
| CSA AWM compliance | I A |
| Suitability - indoor | Yes |
| Plenum (Y/N) | No |
| Bulk cable weight | 30 lbs/1000ft |
| Environmental programs | EU Directive 2000/53/EC (ELV): Yes; EU Directive 2003/96/EC (BFR): Yes; EU Directive 2011/65/EU (RoHS 2): Yes; EU Directive 2012/19/EU (WEEE): Yes; EU Directive 2015/863/EU (RoHS 2 amendment): Yes; EU Directive compliance: EU Directive 2003/11/EC (BFR); EU CE mark: Yes; CA Prop 65 (CJ for Wire and Cable): Yes; MII Order #39 (China RoHS): Yes |
| Priced Per | FT |
