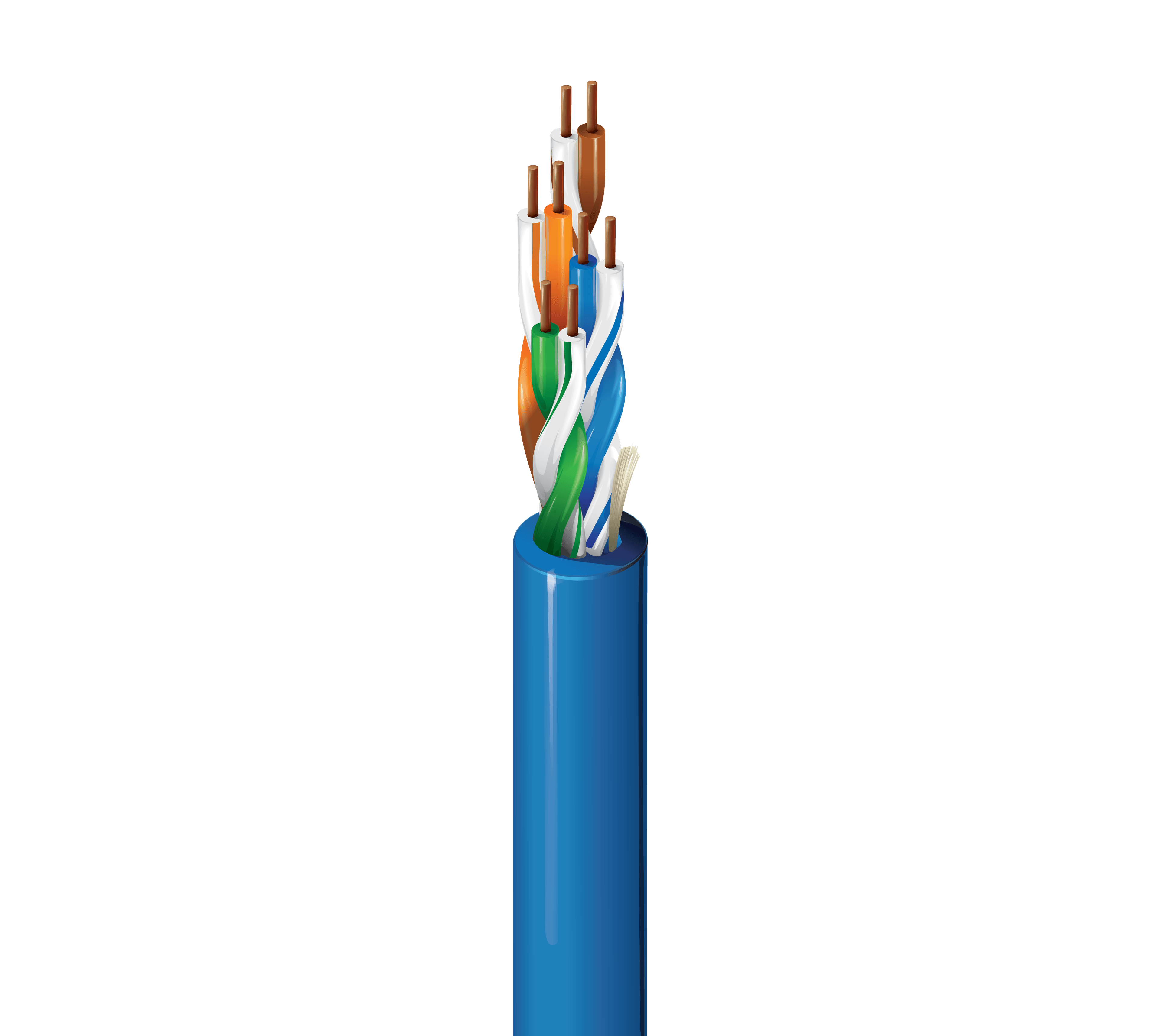

Belden D6UP 009, Premise Horizontal Cat6 Cable 4 Pair 23AWG UTP
SKU:Belden D6UP 009
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden D6UP 009 is a Category 6 premise horizontal cable (250MHz) designed for Ethernet networks and power delivery over twisted pair. It is a U/UTP data cable with 4 pair of 23 AWG solid bare copper conductors and a Plenum-CMP Flamarrest® PVC-LS jacket. This plenum-rated construction meets NFPA 262 and UL 910 (Plenum) and includes a UL voltage rating of 300 V (CMP). It is engineered with controlled delay, skew, and electrical balance characteristics for consistent signal performance.
Belden D6UP 009 Key Features
- Category 6 premise horizontal cable (250MHz) for structured cabling installations.
- U/UTP design with 4 pair of 23 AWG solid bare copper conductors.
- Plenum-CMP Flamarrest® PVC-LS jacket for plenum spaces.
- Meets NFPA 262 and UL 910 (Plenum) fire safety requirements.
- UL voltage rating of 300 V (CMP).
Belden D6UP 009 Applications
- It is intended for premise horizontal cable runs within structured cabling systems.
- It supports Ethernet 1000BASE-T links in network installations.
- It supports Ethernet 100BASE-TX connections for data networking.
- It supports Ethernet 10BASE-T connectivity where required.
- It is suitable for surveillance deployments.
- It supports PoE++, PoE+, and PoE for delivering power over twisted pair.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6 |
| Cable type | Data |
| Shielding | U/UTP |
| Fire rating | Plenum-CMP |
| Number of pairs | 4 Pair |
| Conductor size | 23 AWG |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket trade name | Flamarrest® |
| Jacket Color | White |
| Ripcord | Yes |
| Overall cable diameter (nominal) | 0.224 in (5.69 mm) |
| Max. Conductor DCR | 78 Ohm/km (24 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay frequency | 100 MHz |
| Max. delay | 537.6 ns/100m |
| Max. delay skew | 35 ns/100m |
| Nom. velocity of prop. | 72% |
| Max Pull Tension | 25 lbs (11 kg) |
| Bulk cable weight | 25 lbs/1000ft |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.25 |
| UL temperature | 75°C |
| Operating | -20°C To +75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Environmental suitability | Plenum; Indoor, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum) |
| NEC / UL compliance | CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Third party performance verification | Category 6 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Non-Plenum number | D6UR |
| Patent information | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
