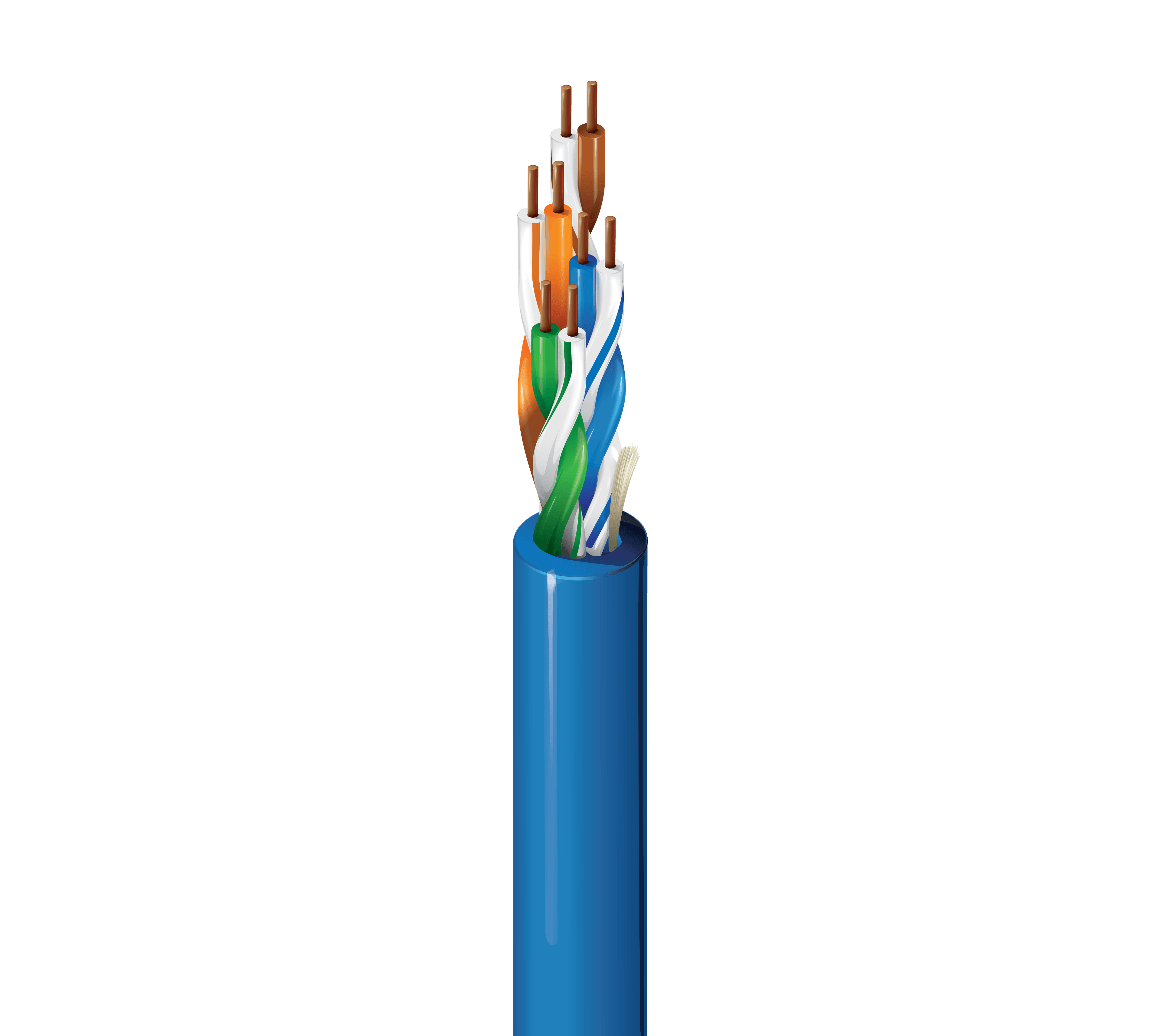

Belden D6UP 009U, Premise Horizontal Cat6 Cable 4 Pair 23AWG UTP
SKU:Belden D6UP 009U
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden D6UP 009U is a Category 6 premise horizontal cable (250MHz) designed for Ethernet performance and power delivery in plenum spaces. It uses a U/UTP design with 4 pair of 23 AWG solid bare copper conductors and a Flamarrest® PVC-LS jacket in white. The cable includes a ripcord to streamline pulls and installation and carries a CMP plenum rating for indoor plenum environments.
Belden D6UP 009U Key Features
- Category 6 premise horizontal cable (250MHz) for structured cabling installations.
- U/UTP design for unshielded twisted-pair network cabling.
- 4 pair of 23 AWG solid bare copper conductors.
- Flamarrest® PVC-LS jacket in white with a ripcord for easier pulling and installation.
- CMP plenum rating for use in indoor plenum environments.
- Designed to meet ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801-1.
Belden D6UP 009U Applications
- Use it for premise horizontal cable installations in indoor building cabling pathways.
- Support Ethernet 1000BASE-T links in structured network environments.
- Deploy it for Ethernet 100BASE-TX connections where Fast Ethernet is required.
- Maintain Ethernet 10BASE-T connectivity for legacy network equipment.
- Choose it for surveillance connectivity where network cabling links devices.
- Deliver power over the network connection with PoE++, PoE+, and PoE.
Patent Information
- This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data type | Data |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket trade name | Flamarrest® |
| Overall cable diameter (nominal) | 0.224 in (5.69 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Bulk cable weight | 25 lbs/1000ft |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.25 |
| Max. Conductor DCR | 78 Ohm/km (24 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Frequency | 100 MHz |
| Max. delay | 537.6 ns/100m |
| Max. delay skew | 35 ns/100m |
| Nom. velocity of prop. | 72% |
| UL Voltage Rating | 300 V (CMP) |
| UL temperature | 75°C |
| Operating | -20°C To +75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Environmental suitability | Plenum Indoor, Indoor |
| Fire rating | Plenum-CMP |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum) |
| NEC / UL compliance | CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Third party performance verification | Category 6 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Non-Plenum number | D6UR |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
