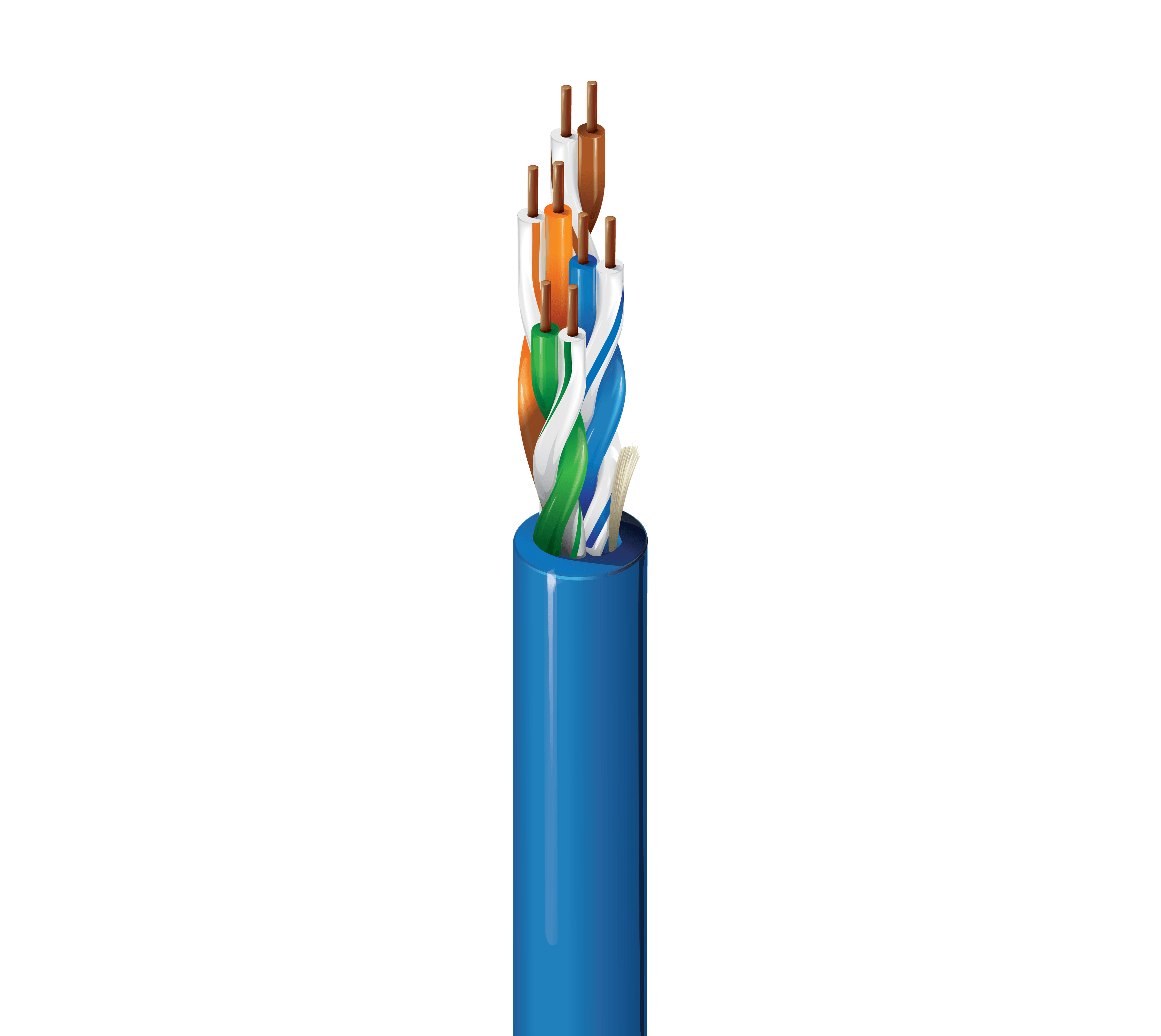

Belden D6UP D15U, Premise Horizontal Cat6 4 Pair 23AWG UTP Blue
SKU:Belden D6UP D15U
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden D6UP D15U is a Category 6 premise horizontal cable (250MHz) designed for Ethernet networks and modern power delivery, including PoE++, PoE+, and PoE. It features 4 pair of 23 AWG solid bare copper conductors in a U/UTP design for structured cabling runs in plenum spaces. The Plenum-CMP construction uses a Flamarrest® PVC-LS jacket and includes a ripcord for easier installation.
Belden D6UP D15U Key Features
- Category 6 premise horizontal cable (250MHz) for structured cabling installations.
- 4 pair construction with 23 AWG solid bare copper conductors in a U/UTP design.
- Plenum-CMP rated cable with a Flamarrest® PVC-LS jacket for plenum indoor environments.
- Supports modern power delivery applications including PoE++, PoE+, and PoE.
- Includes a ripcord to streamline jacket removal during installation.
Belden D6UP D15U Applications
- Designed for premise horizontal cable installations in structured cabling layouts.
- Supports Ethernet 1000BASE-T network links where Category 6 performance is required.
- Suitable for Ethernet 100BASE-TX connections in premise network environments.
- Works for Ethernet 10BASE-T connectivity where that interface is deployed.
- Fits surveillance network deployments that rely on Ethernet cabling.
- Used in PoE++ systems to deliver power over Ethernet cabling.
- Supports PoE+ deployments for powering compatible network devices.
- Supports PoE applications for combined data and power delivery.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data type | Data type |
| Data category | Category 6 |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Pair color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket trade name | Flamarrest® |
| Jacket Color | Blue |
| Overall cable diameter (nominal) | 0.224 in (5.69 mm) |
| Bulk cable weight | 25 lbs/1000ft |
| Max. Conductor DCR | 78 Ohm/km (24 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Frequency | 100 MHz |
| Max. delay | 537.6 ns/100m |
| Max. delay skew | 35 ns/100m |
| Nom. velocity of prop. | 72% |
| UL Voltage Rating | 300 V (CMP) |
| Max Pull Tension | 25 lbs (11 kg) |
| Stationary min. bend radius | 1.0 in (25 mm) |
| Installation min. bend radius | 2.25 |
| UL temperature | 75°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Environmental suitability | Plenum; Indoor, Indoor |
| Fire rating | Plenum |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum) |
| NEC / UL compliance | CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Third party performance verification | Category 6 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Non-Plenum number | D6UR |
| Patent information | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
