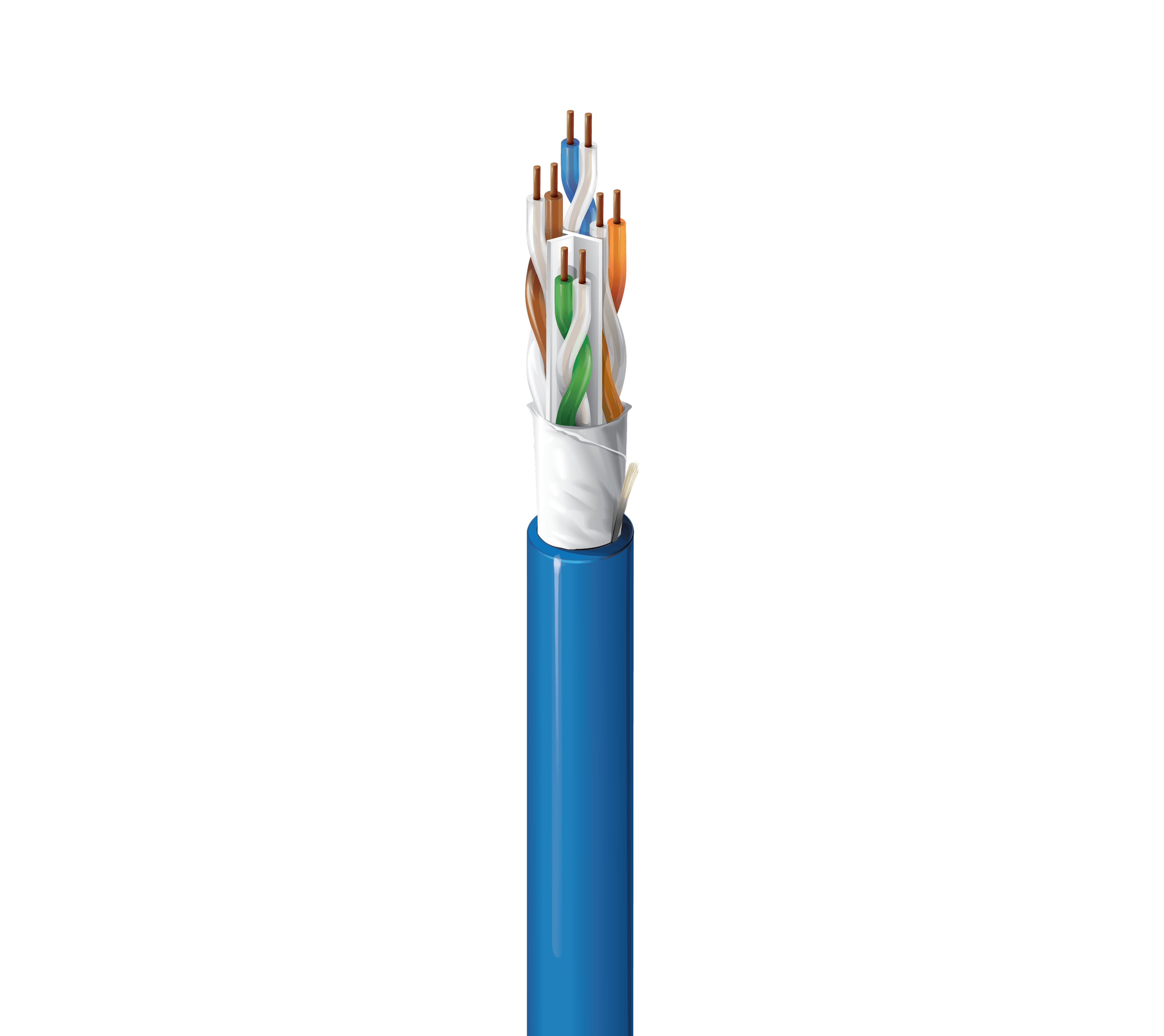

Belden DAUP 004, CAT6A 4 23 Solid BCU UTP Plenum PVC Yellow
SKU:Belden DAUP 004
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden DAUP 004 is a Category 6A data cable for premise horizontal installations and high-performance Ethernet, including 10GBASE-T. It features 4 pair 23 AWG solid bare copper conductors in a U/UTP (Unshielded Twisted Pair) design. This plenum-rated CMP cable uses a Flamarrest® PVC-LS jacket and includes a patented X-Spline® center member with EquiBlock™ Barrier Technology to support consistent pair geometry.
Belden DAUP 004 Key Features
- Category 6A data cable designed for high-performance Ethernet, including 10GBASE-T.
- U/UTP (Unshielded Twisted Pair) construction with 4 pair 23 AWG solid bare copper conductors.
- Plenum-CMP fire rating with a Flamarrest® PVC-LS jacket for indoor plenum environments.
- Patented X-Spline® center member with EquiBlock™ Barrier Technology to support consistent pair geometry.
Belden DAUP 004 Applications
- Use it for premise horizontal cable runs in structured cabling systems.
- Support Ethernet 10GBASE-T links where Category 6A performance is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket material trade name | Flamarrest® |
| Ripcord | Yes |
| Jacket Color | Yellow |
| Non-Plenum number | DAUR |
| Overall cable diameter (nominal) | 0.250 in (6.35 mm) |
| Bulk cable weight | 34 lbs/1000ft (51 kg/km) |
| Max. Conductor DCR | 82 Ohm/km (25 Ohm/1000ft) |
| Max. capacitance unbalance | 45 pF/100m |
| Frequency | 100 MHz |
| Max. delay | 537.6 ns/100m |
| Max. delay skew | 45 ns/100m |
| Nom. velocity of prop. | 69% |
| UL Voltage Rating | 300 V (CMP) |
| UL temperature | 75°C |
| Operating | -20°C To +75°C |
| Storage | -20°C To +75°C |
| Bend radius (stationary min.) | 1 in (25 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Environmental suitability | Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6 |
| NEC / UL compliance | Article 800 |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6A |
| Third party performance verification | Channel/Category 6A |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
