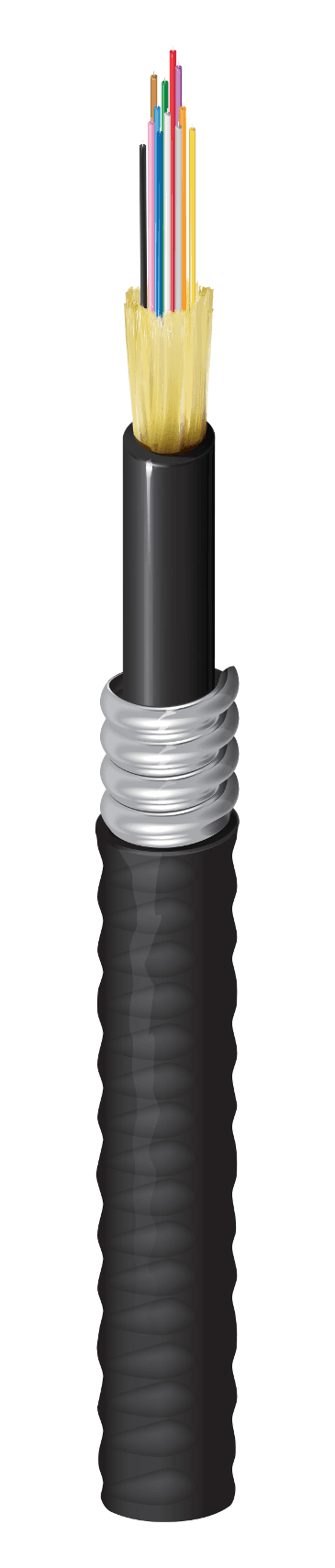

Belden FD3D012A9, 12 F FX OM3 OFCP Armored Black Jacket Cable
Description
Belden FD3D012A9 is an indoor/outdoor OM3 fiber distribution cable designed for premise backbone runs. It features 12 tight-buffered fibers (50/125 μm) with TIA-598-D color coding and waterblocking aramid yarns for moisture management. The construction includes AIA - Aluminum Interlock Armor and a black PVC - Polyvinyl Chloride jacket system for mechanical protection. Rated OFCP, FT6, it supports multimode performance including 10 Gigabit Ethernet Performance of 300 m at 850 nm.
Belden FD3D012A9 Key Features
- This fiber distribution cable is designed for premise backbone applications.
- Indoor/outdoor suitability includes sunlight resistance and burial listed for installation flexibility.
- OM3 fiber includes 12 tight-buffered fibers (50/125 μm) with TIA-598-D color coding for consistent identification.
- Waterblocking aramid yarns are included in the cable core and as the inner jacket strength member to help manage moisture exposure.
- AIA - Aluminum Interlock Armor is paired with a black PVC - Polyvinyl Chloride jacket system for added mechanical protection.
- Flammability / reaction to fire rated OFCP, FT6.
- 10 Gigabit Ethernet Performance (850 nm): 300 m.
Belden FD3D012A9 Applications
- Use it for premise backbone runs where durability and performance matter.
- Install it in indoor/outdoor locations where sunlight resistance is required.
- Choose it for environments where burial is specified.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Fiber buffer material | PVC - Polyvinyl Chloride |
| Fiber buffer diameter | 900 µm |
| Inner jacket material | PVC - Polyvinyl Chloride |
| Inner jacket color | Black |
| Inner Jacket Nominal Diameter | 0.230 in (5.8 mm) |
| Inner jacket ripcords | 1 |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Outer jacket color | Black |
| Outer jacket nominal diameter | 0.480 in (12.2 mm) |
| Max. attenuation (850 nm) | 3.0 dB/km |
| Max. attenuation (1300 nm) | 1.0 dB/km |
| 1 Gigabit Ethernet Performance (850 nm) | 1000 m |
| 1 Gigabit Ethernet Performance (1300 nm) | 550 m |
| Min. Effective Modal Bandwidth (EMB) (850 nm) | 2000 MHz.km |
| Min. Overfilled Launch (OFL) Bandwidth (850 nm) | 1500 MHz.km |
| Min. Overfilled Launch (OFL) Bandwidth (1300 nm) | 500 MHz.km |
| Minimum bend radius during installation | 20x Cable OD |
| Minimum bend radius during operation | 10x Cable OD |
| Max. tensile strength during installation | 660 N (150 lbf) |
| Max. tensile strength during operation | 200 N (45 lbf) |
| Crush resistance | 440 N/cm |
| Bulk cable weight | 108 lbs/kft (161 kg/km) |
| Installation temperature range | 0°C to +60°C |
| Operating Temperature Range | -40°C to +70°C |
| Storage temperature range | -40°C to +70°C |
| ICEA compliance | S-104-696 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| Sustainability | CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
