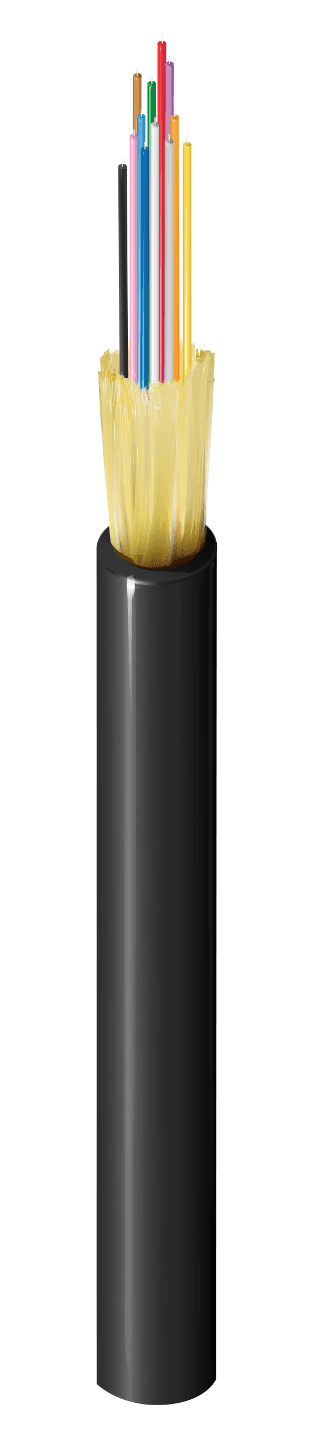

Belden FD3D012P9, 12 F FX OM3 OFNP Plenum Fiber Cable Black Jacket
SKU:Belden FD3D012P9
● In stock
Description
Belden FD3D012P9 is an FX Indoor/Outdoor OM3 fiber distribution cable with a tight buffered, non-unitized design for premise backbone installations. It features 12 fibers with TIA-598-D color coding and a black PVC - Polyvinyl Chloride jacket. This all-dielectric cable uses waterblocking aramid yarns and is listed for OFNP, FT6 with a plenum fire rating. OM3 optical characteristics support 10 Gigabit Ethernet performance up to 300 m (850 nm).
Belden FD3D012P9 Key Features
- Designed as a fiber distribution cable for premise backbone installations.
- OM3 fiber type with 12 fibers and TIA-598-D color coding for consistent identification.
- Tight buffered construction with a non-unitized design.
- All-dielectric construction with waterblocking aramid yarns for cable core water blocking and as the strength member.
- Black PVC - Polyvinyl Chloride outer jacket with 1 outer jacket ripcord.
- Environmental suitability includes indoor/outdoor, sunlight resistance, and burial.
- Flammability / reaction to fire: OFNP, FT6; fire rating: plenum.
Belden FD3D012P9 Applications
- Supports premise backbone installations where a fiber distribution cable is required.
- Works in indoor/outdoor environments, including locations where sunlight resistance is needed.
- Enables burial installations as listed under environmental suitability.
- Meets OFNP, FT6 and plenum fire rating requirements for installations that call for these flammability / reaction to fire classifications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product category | Fiber distribution cable |
| Fiber core diameter | 50/125 µm |
| Fiber buffer material | PVC - Polyvinyl Chloride |
| Fiber buffer diameter | 900 µm |
| Armored | No |
| Rodent protected | No |
| Nom. diameter | 0.230 in (5.8 mm) |
| Bulk cable weight | 21 lbs/kft (31 kg/km) |
| Max. attenuation | 3.0 dB/km (850 nm); 1.0 dB/km (1300 nm) |
| 1 Gigabit Ethernet performance | 1000 m (850 nm); 550 m (1300 nm) |
| 10 Gigabit Ethernet performance | 300 m (850 nm) |
| Min. effective modal bandwidth (EMB) | 2000 MHz.km (850 nm) |
| Min. overfilled launch (OFL) bandwidth | 1500 MHz.km (850 nm); 500 MHz.km (1300 nm) |
| Minimum bend radius during installation | 15x Cable OD |
| Minimum bend radius during operation | 10x Cable OD |
| Max. tensile strength during installation | 660 N (150 lbf) |
| Max. tensile strength during operation | 200 N (45 lbf) |
| Crush resistance | 220 N/cm |
| Installation temperature range | 0°C to +60°C |
| Operating Temperature Range | -40°C to +70°C |
| Storage temperature range | -40°C to +70°C |
| ICEA compliance | S-104-696 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| Sustainability | CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
