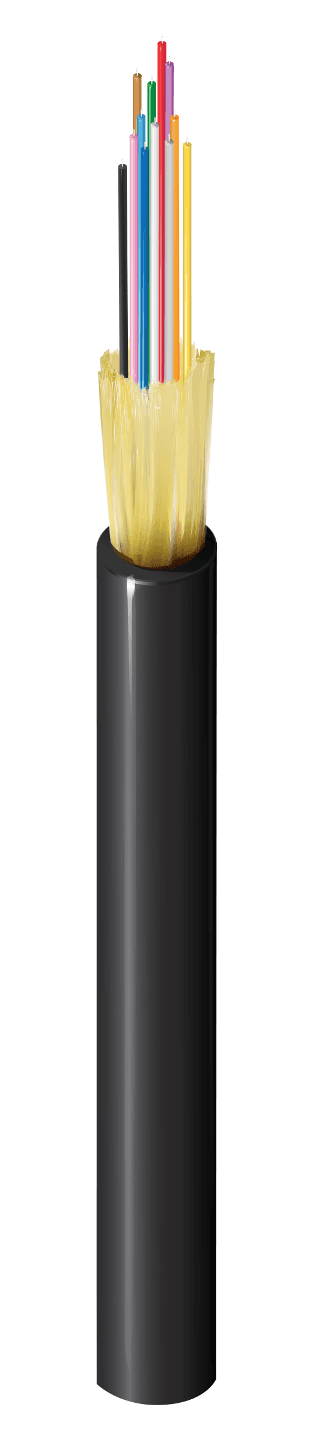

Belden FDSD012P9, Indoor Outdoor Fiber Cable OS2 OFNP 12 F FX
SKU:Belden FDSD012P9
● In stock
Description
Belden FDSD012P9 is an FX indoor/outdoor OS2 fiber distribution cable with a tight buffered design and a black PVC - Polyvinyl Chloride jacket. It is designed for premise backbone runs where plenum performance is required, and it is rated OFNP and FT6. This cable includes 12 tight-buffered fibers with TIA-598-D color coding and uses waterblocking aramid yarns for strength and cable core water blocking. It is suitable for sunlight resistance and supports optical performance at 1310 nm and 1550 nm.
Belden FDSD012P9 Key Features
- This fiber distribution cable is built for premise backbone installations where plenum performance is required.
- The FX indoor/outdoor design supports sunlight resistance for use across mixed indoor/outdoor pathways.
- It includes 12 tight-buffered OS2 fibers with TIA-598-D color coding for consistent identification.
- The black PVC - Polyvinyl Chloride jacket provides outer protection.
- Waterblocking aramid yarns provide strength and cable core water blocking.
- All-dielectric: Yes.
- Flammability / reaction to fire: OFNP, FT6; Fire rating: Plenum.
Belden FDSD012P9 Applications
- Use it for premise backbone runs where plenum performance is required.
- Route it through mixed indoor/outdoor environments where a single distribution cable is needed.
- Choose it for pathways where sunlight resistance is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product category | Fiber Distribution Cable |
| Suitable applications | Premise Backbone |
| Environmental suitability | Indoor/Outdoor, Sunlight Resistance |
| Fiber core diameter | 8.2/125 µm |
| Fiber buffer diameter | 900 µm |
| Fiber buffer material | PVC - Polyvinyl Chloride |
| Cable type | Tight buffered |
| Armored | No |
| Rodent protected | No |
| Nom. diameter | 0.230 in (5.8 mm) |
| Outer jacket ripcord | 1 |
| Max. attenuation | 0.50 dB/km at 1310 nm; 0.50 dB/km at 1550 nm |
| Mode field diameter | 9.2 µm at 1310 nm; 10.4 µm at 1550 nm |
| 1 Gigabit Ethernet performance | 5,000 m at 1310 nm |
| 10 Gigabit Ethernet performance | 10,000 m at 1310 nm; 50,000 m at 1550 nm |
| Minimum bend radius during installation | 15x Cable OD |
| Minimum bend radius during operation | 10x Cable OD |
| Max. tensile strength during installation | 660 N (150 lbf) |
| Max. tensile strength during operation | 200 N (45 lbf) |
| Crush resistance | 220 N/cm |
| Bulk cable weight | 21 lbs/kft (31 kg/km) |
| Installation temperature range | 0°C to +60°C |
| Operating Temperature Range | -40°C to +70°C |
| Storage temperature range | -40°C to +70°C |
| ICEA compliance | S-104-696 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| Sustainability | CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
