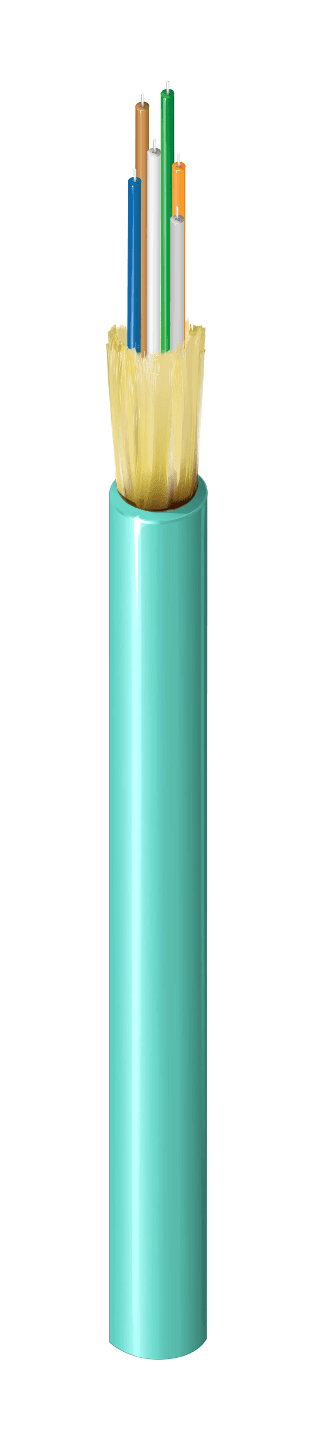

Belden FI4D006R9A, 6 F FX Indoor TB OM4 OFNR Aqua Jacket
Description
Belden FI4D006R9A is an indoor fiber distribution cable built with OM4 50/125 μm multimode fiber in a 6-fiber, tight-buffered design. It features a non-unitized construction with a PVC - Polyvinyl Chloride aqua jacket and aramid yarn strength members for dependable handling and routing. The cable is rated OFNR, FT4 and supports 10 Gigabit Ethernet Performance up to 550 m at 850 nm.
Belden FI4D006R9A Key Features
- This fiber distribution cable is designed for Premise Backbone applications in indoor environments.
- It uses OM4 50/125 μm multimode fiber in a 6-fiber, tight-buffered design.
- Its non-unitized construction includes a PVC - Polyvinyl Chloride aqua jacket.
- Aramid yarns serve as the strength member, and 1 outer jacket ripcord supports handling and routing.
- Flammability / reaction to fire ratings include OFNR, FT4.
- 10 Gigabit Ethernet Performance: 550 m (850 nm).
Belden FI4D006R9A Applications
- Supports Premise Backbone connectivity where an indoor fiber distribution cable is required.
- For indoor routing, it suits distribution runs where a tight-buffered, non-unitized fiber design is preferred.
- Delivers optical performance for Ethernet links, including 1 Gigabit Ethernet Performance and 10 Gigabit Ethernet Performance distances as specified.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product category | Fiber Distribution Cable |
| Suitable applications | Premise Backbone |
| Environmental suitability | Indoor |
| Fiber type | OM4 |
| Fiber core diameter | 50/125 µm |
| Fiber count | 6 |
| Cable type | Tight buffered |
| Fiber buffer material | PVC - Polyvinyl Chloride |
| Fiber buffer diameter | 900 µm |
| Fiber color coding | TIA-598-D |
| Jacket Material | PVC - Polyvinyl Chloride |
| Outer jacket color | Aqua |
| Strength member | Aramid Yarns |
| Outer jacket ripcord | 1 |
| Nom. diameter | 0.220 in (5.6 mm) |
| Bulk cable weight | 20 lbs/kft (30 kg/km) |
| Max. attenuation | 3.0 dB/km (850 nm); 1.0 dB/km (1300 nm) |
| 1 Gigabit Ethernet performance | 1100 m (850 nm); 550 m (1300 nm) |
| Min. effective modal bandwidth (EMB) | 4700 MHz.km (850 nm) |
| Min. overfilled launch (OFL) bandwidth | 3500 MHz.km (850 nm); 500 MHz.km (1300 nm) |
| Minimum bend radius during installation | 15x Cable OD |
| Minimum bend radius during operation | 10x Cable OD |
| Max. tensile strength during installation | 660 N (150 lbf) |
| Max. tensile strength during operation | 200 N (45 lbf) |
| Crush resistance | 100 N/cm |
| Installation temperature range | -10°C to +60°C |
| Operating Temperature Range | -20°C to +70°C |
| Storage temperature range | -40°C to +70°C |
| ICEA compliance | S-83-596 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| Sustainability | CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
