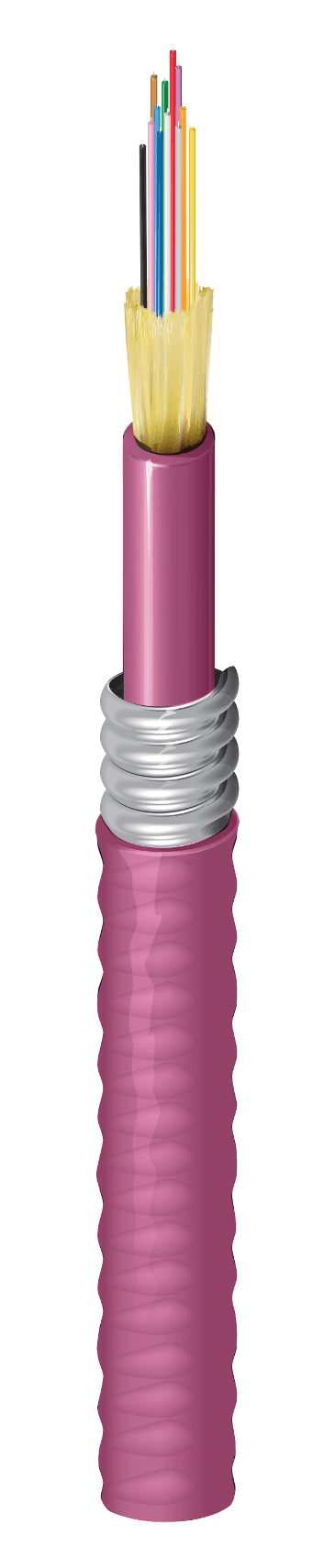

Belden FI4D012A9, 12 F OM4 OFNP Indoor Fiber 3.0 1.25 DB KM

Belden FI4D012A9 is an indoor OM4 fiber distribution cable designed for premise backbone installations. It features a tight buffered design with 12 fibers, TIA-598-D color coding, and PVC - Polyvinyl Chloride construction. This armored cable uses AIA - Aluminum Interlock Armor and an Erika Violet jacket, with a Plenum fire rating and OFCP, FT6 flammability / reaction to fire. Optical characteristics include max attenuation of 3.0 dB/km (850 nm) and 1.0 dB/km (1300 nm), with 10 Gigabit Ethernet Performance to 550 m (850 nm).

Belden FI4D012A9 Key Features

• Indoor fiber distribution cable for premise backbone applications.
• OM4, 50/125 μm fiber with 12 fibers and TIA-598-D color coding.
• Tight buffered design with PVC - Polyvinyl Chloride buffer material and 900 μm buffer diameter.
• Armored construction with AIA - Aluminum Interlock Armor for added physical protection.
• Plenum fire rating with OFCP, FT6 flammability / reaction to fire.
• Max. attenuation: 3.0 dB/km (850 nm); 1.0 dB/km (1300 nm).
• 10 Gigabit Ethernet Performance: 550 m (850 nm); -- (1300 nm).

Belden FI4D012A9 Applications

• Use it for premise backbone runs in indoor environments where fiber distribution is required.
• Support high-bandwidth optical links with max attenuation of 3.0 dB/km (850 nm) and 1.0 dB/km (1300 nm).
• Enable 1 Gigabit Ethernet Performance up to 1100 m (850 nm) and 550 m (1300 nm).
• Run 10 Gigabit Ethernet Performance up to 550 m (850 nm).
