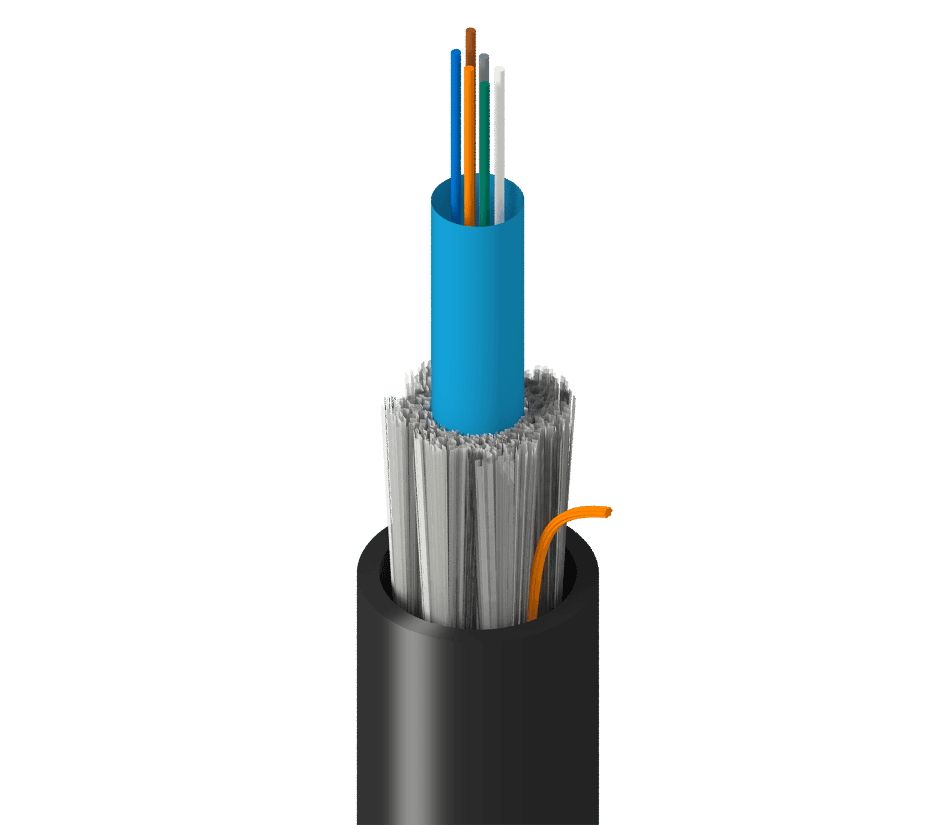

Belden FS1C006N0, 6 F FX Central Tube LT Cable OM1 Outdoor OSP
SKU:Belden FS1C006N0
● In stock
Description
Belden FS1C006N0 is a Central Loose Tube outdoor loose tube fiber optic cable with 6 OM1 fibers and a PE - Polyethylene black jacket. It features a gel-filled core and waterblocking tape to support use in outdoor & wet locations, including direct burial. This all-dielectric design is specified for Extended Distance Horizontal & Backbone Data/Telco Network installations and noisy environment routing. Optical characteristics are specified at 850 nm and 1300 nm, including max. attenuation of 3.25 dB/km and 1.0 dB/km.
Belden FS1C006N0 Key Features
- Central Loose Tube construction designed for outdoor installations.
- All-dielectric design: Yes.
- Gel Filled subunit waterblocking and Gel Filled cable core water blocking.
- PE - Polyethylene outer jacket in black.
- Core wrap material: Waterblocking tape.
- Fiber subunit strength members: Aramid Yarns; strength member: Fiberglass Yarns.
- ICEA compliance: S-87-640; TIA/EIA compliance: ANSI/ICEA S-87-640.
- Sustainability: CA Prop 65.
Belden FS1C006N0 Applications
- Supports Extended Distance Horizontal & Backbone Data/Telco Network runs where OM1 fiber is specified.
- Enables routing in a noisy environment as listed in the suitable applications.
- Fits Outdoor & Wet Locations where gel-filled waterblocking is needed.
- Meets Direct Burial installation requirements.
- Includes Rodent Proof in the suitable applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product category | Central Loose Tube |
| Environmental suitability | Outdoor |
| Cable type | Loose tube |
| Armored | No |
| Self-support | No |
| Fiber type | OM1 |
| Fiber count | 6 |
| Fiber core diameter | 62.5/125 µm |
| Fiber diameter | 250 µm |
| Fiber color coding | TIA-598-D |
| Number of active subunits | 1 |
| Fibers per subunit | 6 |
| Number of fillers | 0 |
| Subunit color | Blue |
| Subunit diameter | 0.150 in (3.8 mm) |
| Nom. diameter | 0.315 in (8.0 mm) |
| Outer jacket ripcord | 1 |
| Bulk cable weight | 33 lbs/kft (49 kg/km) |
| Max. attenuation (850 nm) | 3.25 dB/km |
| Max. attenuation (1300 nm) | 1.0 dB/km |
| 1 Gigabit Ethernet Performance (850 nm) | 300 m |
| 1 Gigabit Ethernet Performance (1300 nm) | 550 m |
| 10 Gigabit Ethernet performance (850 nm) | 33 m |
| Min. restricted mode launch @ 850 nm | 220 MHz.km |
| Min. Overfilled Launch (OFL) Bandwidth (850 nm) | 200 MHz.km |
| Min. Overfilled Launch (OFL) Bandwidth (1300 nm) | 500 MHz.km |
| Minimum bend radius during installation | 15x Cable OD |
| Minimum bend radius during operation | 10x Cable OD |
| Max. tensile strength during installation | 2670 N (600 lbf) |
| Max. tensile strength during operation | 800 N (180 lbf) |
| Crush resistance | 220 N/cm |
| Installation temperature range | -30C to +60C |
| Operating Temperature Range | -40C to +70C |
| Storage temperature range | -40C to +70C |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
