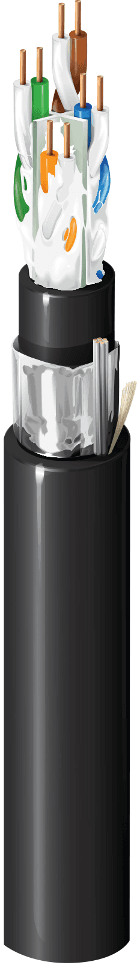

Belden OSP6AF 010, CAT6A 4PR F UTP OSP REE Cable, Black Jacket
Description
Belden OSP6AF 010 is a Category 6A (500MHz) outside plant (OSP) data cable designed for Ethernet up to 10GBASE-T and network demands including Wi-Fi 6, PoE++, and HDBaseT. It is built with 4 pair of 23 AWG solid bare copper conductors in an F/UTP construction with a 100% bi-laminate (Alum+Poly) tape shield and 26 AWG (7x34) TC drainwire. For outdoor use, it includes a gel-filled waterblocking design plus an inner PE jacket and an outer polyolefin jacket.
Belden OSP6AF 010 Key Features
- Category 6A (500MHz) data cable construction for high-performance network cabling.
- 4 pair of 23 AWG solid bare copper conductors.
- F/UTP design with a 100% bi-laminate (Alum+Poly) tape shield and 26 AWG (7x34) TC drainwire.
- Gel-filled waterblocking design for outside plant (OSP) installations.
- Inner jacket material: PE - Polyethylene; outer jacket material: PO - Polyolefin; jacket color: Black.
- Environmental suitability: Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire.
Belden OSP6AF 010 Applications
- Designed for OSP-Outside Plant installations where a data cable is needed in outdoor environments.
- Use it for premise horizontal cable runs as part of structured cabling layouts.
- Support Ethernet up to 10GBASE-T for high-speed network links.
- Connect Wi-Fi 6 and Wi-Fi 5 network infrastructure.
- Deploy PoE, PoE+, and PoE++ where power and data are delivered over the same cabling.
- Apply it for HDBaseT connectivity in supported installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6A |
| Frequency rating | 500MHz |
| Number of pairs | 4 |
| Conductor size | 23 |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 26 AWG (7x34) TC |
| Waterblocking | Gel Filled |
| Separator | Center Member (Patented X-Spline®), EquiBlock™ Barrier Technology |
| Ripcord | Yes |
| Insulation Material | PO - Polyolefin |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
| Inner Jacket Nominal Diameter | 0.26 in (6.6 mm) |
| Overall cable diameter (nominal) | 0.360 in (9.14 mm) |
| Bulk cable weight | 49 lbs/1000ft (73 kg/km) |
| Voltage Rating | 300 V |
| Max. Conductor DCR | 82 Ohm/km (25 Ohm/1000ft) |
| Max. capacitance unbalance | 45 pF/100m |
| Delay (100 MHz) max. delay skew | 45 ns/100m |
| Delay (100 MHz) nominal velocity of prop. | 64% |
| Operating temperature | -40°C To +75°C |
| Installation temperature | -40°C To +60°C |
| Storage temperature | -40°C To +75°C |
| Bend radius (stationary min.) | 3.0 in (76 mm) |
| Bend radius (installation min.) | 3.75 in (95.3 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| CPR compliance | CPR Euroclass: Fca; CPR UKCA Class: Fca |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6A |
| ISO/IEC compliance | 11801 ed 2.2 (2011) Class EA |
| CENELEC compliance | Segregation class according EN50174-2 = a |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Patent information | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
