Belden OSP6U 010, Multi Conductor Category 6 4 pair UTP OSP Black
Description

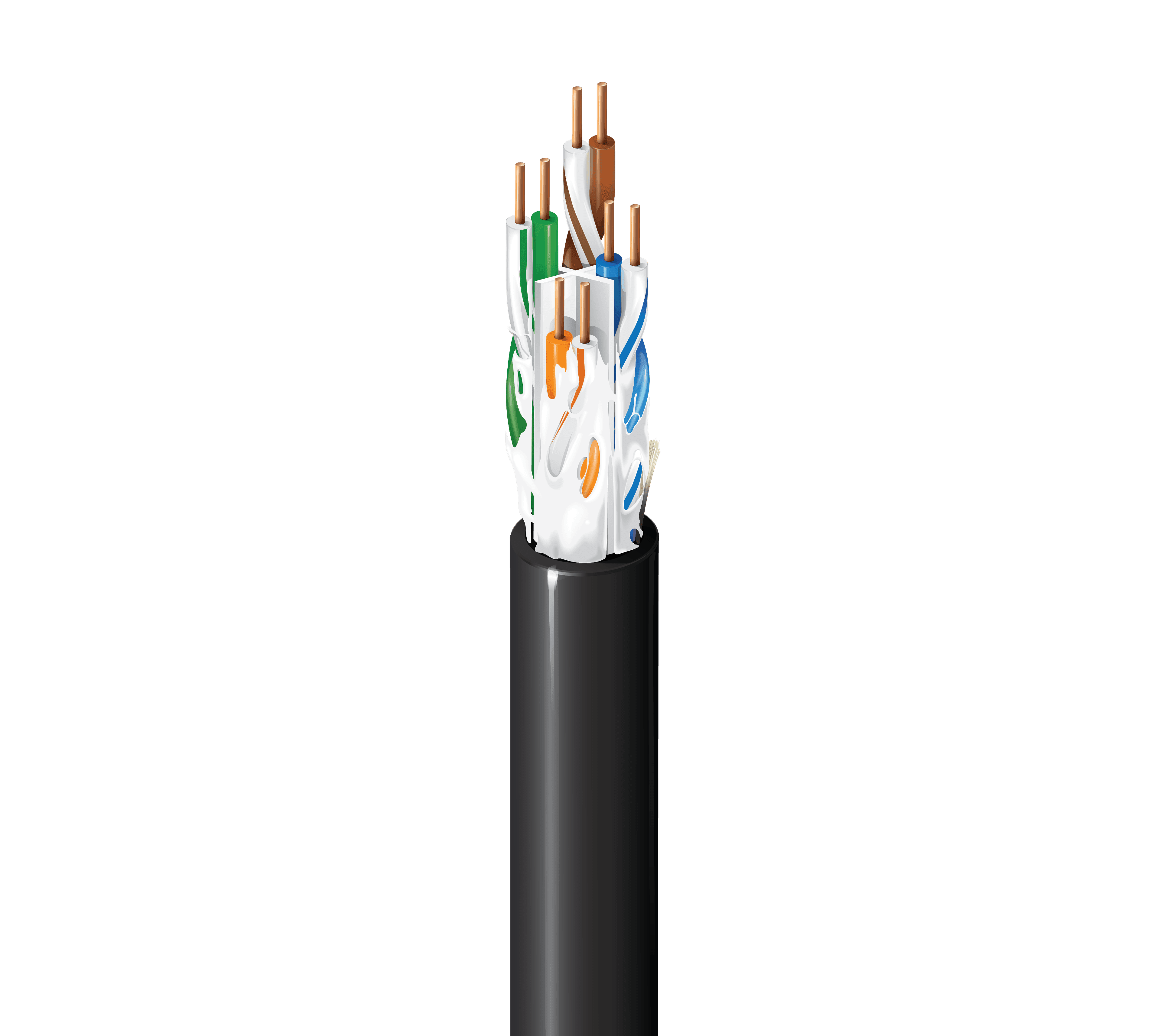

Belden OSP6U 010 is a Category 6 OSP rated 4-pair U/UTP data cable with 24 AWG solid bare copper conductors and a black polyethylene jacket. It features polyolefin insulation, gel-filled waterblocking, and a center member (Patented X-Spline®) with a ripcord to support stability and easier jacket removal. The cable is designed to support Ethernet 10BASE-T, 100BASE-TX, and 1000BASE-T, and it is also suitable for PoE, PoE+, and PoE++.
Belden OSP6U 010 Key Features
- Category 6, 4-pair U/UTP data cable construction.
- 24 AWG solid BC - Bare Copper conductors with PO - Polyolefin insulation.
- Gel filled waterblocking for OSP-outside installations.
- Black polyethylene jacket with a center member (Patented X-Spline®) and ripcord.
- Designed to support Ethernet 10BASE-T, 100BASE-TX, and 1000BASE-T, and suitable for PoE, PoE+, and PoE++.
High Frequency Performance
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Overall cable diameter (nominal) | 0.251 in (6.38 mm) |
| Voltage Rating | 300 V |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 160 pF/100m |
| Delay (100 MHz) max. delay skew | 45 ns/100m |
| Delay (100 MHz) nom. velocity of prop. | 65% |
| Insulation color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Separator material | PE - Polyethylene |
| Sequential marking | Sequential marking at two foot intervals |
| Fire rating | Not (UL) listed Cable |
| High frequency performance | 1 MHz: Max. insertion loss (attenuation) 2.0 dB/100m; Min. NEXT 74.3 dB; Min. PSNEXT 72.3 dB; Min. PSACR 70.3 dB; Min. ACRF (ELFEXT) 67.8 dB; Min. PSACRF (PSELFEXT) 64.8 dB; Min. RL (Return Loss) 20.0 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 40.0 dB; Min. ELTCTL 35.0 dB 4 MHz: Max. insertion loss (attenuation) 3.8 dB/100m; Min. NEXT 65.3 dB; Min. PSNEXT 63.3 dB; Min. PSACR 59.5 dB; Min. ACRF (ELFEXT) 55.7 dB; Min. PSACRF (PSELFEXT) 52.7 dB; Min. RL (Return Loss) 23.0 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 40.0 dB; Min. ELTCTL 23.0 dB 8 MHz: Max. insertion loss (attenuation) 5.3 dB/100m; Min. NEXT 60.8 dB; Min. PSNEXT 58.8 dB; Min. PSACR 53.4 dB; Min. ACRF (ELFEXT) 49.7 dB; Min. PSACRF (PSELFEXT) 46.7 dB; Min. RL (Return Loss) 24.5 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 40.0 dB; Min. ELTCTL 16.9 dB 10 MHz: Max. insertion loss (attenuation) 6.0 dB/100m; Min. NEXT 59.3 dB; Min. PSNEXT 57.3 dB; Min. PSACR 51.4 dB; Min. ACRF (ELFEXT) 47.8 dB; Min. PSACRF (PSELFEXT) 44.8 dB; Min. RL (Return Loss) 25.0 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 40.0 dB; Min. ELTCTL 15.0 dB 16 MHz: Max. insertion loss (attenuation) 7.6 dB/100m; Min. NEXT 56.3 dB; Min. PSNEXT 54.3 dB; Min. PSACR 46.7 dB; Min. ACRF (ELFEXT) 43.7 dB; Min. PSACRF (PSELFEXT) 40.7 dB; Min. RL (Return Loss) 25.0 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 38.0 dB; Min. ELTCTL 10.9 dB 20 MHz: Max. insertion loss (attenuation) 8.5 dB/100m; Min. NEXT 54.8 dB; Min. PSNEXT 52.8 dB; Min. PSACR 44.3 dB; Min. ACRF (ELFEXT) 41.7 dB; Min. PSACRF (PSELFEXT) 38.7 dB; Min. RL (Return Loss) 25.0 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 37.0 dB; Min. ELTCTL 9.0 dB 25 MHz: Max. insertion loss (attenuation) 9.5 dB/100m; Min. NEXT 53.3 dB; Min. PSNEXT 51.3 dB; Min. PSACR 41.8 dB; Min. ACRF (ELFEXT) 39.8 dB; Min. PSACRF (PSELFEXT) 36.8 dB; Min. RL (Return Loss) 24.3 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 36.0 dB; Min. ELTCTL 7.0 dB 31.25 MHz: Max. insertion loss (attenuation) 10.7 dB/100m; Min. NEXT 51.9 dB; Min. PSNEXT 49.9 dB; Min. PSACR 39.2 dB; Min. ACRF (ELFEXT) 37.9 dB; Min. PSACRF (PSELFEXT) 34.9 dB; Min. RL (Return Loss) 23.6 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 35.1 dB; Min. ELTCTL 5.1 dB 62.5 MHz: Max. insertion loss (attenuation) 15.4 dB/100m; Min. NEXT 47.4 dB; Min. PSNEXT 45.4 dB; Min. PSACR 30.0 dB; Min. ACRF (ELFEXT) 31.8 dB; Min. PSACRF (PSELFEXT) 28.8 dB; Min. RL (Return Loss) 21.5 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 32.0 dB 100 MHz: Max. insertion loss (attenuation) 19.8 dB/100m; Min. NEXT 44.3 dB; Min. PSNEXT 42.3 dB; Min. PSACR 22.5 dB; Min. ACRF (ELFEXT) 27.8 dB; Min. PSACRF (PSELFEXT) 24.8 dB; Min. RL (Return Loss) 20.1 dB; Max./Min. input impedance (unFitted) 100 ± 15 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 30.0 dB 155 MHz: Max. insertion loss (attenuation) 25.2 dB/100m; Min. NEXT 41.5 dB; Min. PSNEXT 39.5 dB; Min. PSACR 14.3 dB; Min. ACRF (ELFEXT) 23.9 dB; Min. PSACRF (PSELFEXT) 20.9 dB; Min. RL (Return Loss) 18.8 dB; Max./Min. input impedance (unFitted) 100 ± 22 Ohm; Max./Min. fitted impedance 100 ± 15 Ohm; Min. TCL 28.1 dB 200 MHz: Max. insertion loss (attenuation) 29.0 dB/100m; Min. NEXT 39.8 dB; Min. PSNEXT 37.8 dB; Min. PSACR 8.8 dB; Min. ACRF (ELFEXT) 21.7 dB; Min. PSACRF (PSELFEXT) 18.7 dB; Min. RL (Return Loss) 18. |
| Priced Per | FT |
