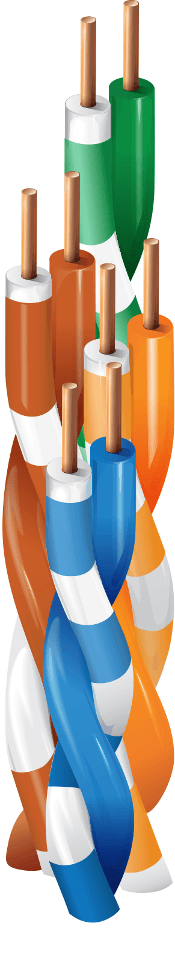

Belden XCGB4 000, 4 pair Cross Connect Wire
SKU:Belden XCGB4 000
$1,000.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden XCGB4 000 is a Category 6 premise cross connect cable (250MHz) designed for cross-connect and interconnect applications. It features a U/UTP construction with 4 pair 23 AWG solid bare copper conductors and a PO+FEP insulation system. This cable is rated Riser-CMR and is third party verified to ANSI/TIA-568-C.2, Category 6. Electrical performance data includes attenuation, SRL, and fitted impedance values across a wide frequency range.
Belden XCGB4 000 Key Features
- Category 6 premise cross connect cable (250MHz) for structured cabling cross-connect and interconnect applications.
- U/UTP shielding type for balanced twisted-pair data cabling designs.
- 4 pair 23 AWG solid bare copper conductors (BC - Bare Copper) for consistent conductor geometry.
- PO+FEP - Polyolefin + Fluorinated Ethylene Propylene insulation system with defined pair color coding for identification.
- Riser-CMR flame rating with flammability / reaction to fire tested to UL 1685 (UL Loading).
- Third party verified to ANSI/TIA-568-C.2, Category 6, with CPR UKCA Class: Eca and UKCA Mark compliance listed.
Belden XCGB4 000 Applications
- Cross-connect installations are supported where structured cabling pathways require organized terminations.
- Interconnect setups are supported to link equipment or cabling segments within a premises network.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6 |
| NEC / UL compliance | Cross-Connect |
| Number of pairs | 4 |
| Wire size | 23 AWG |
| Stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Overall nominal diameter | 0.185 in |
| Bulk cable weight | 18 lbs/1000ft |
| UL temperature | 60°C |
| Bend radius (stationary min.) | 1 in (25 mm) |
| Bend radius (installation min.) | 1 in (25 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| CPR compliance | CPR UKCA Class: Eca |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Electrical characteristics (high frequency) | 0.772 MHz: Max. insertion loss (attenuation) 1.8 dB/100m; Max./min. fitted impedance 102 ± 15 1 MHz: Max. insertion loss (attenuation) 2.0 dB/100m; Min. SRL 20; Max./min. fitted impedance 100 ± 15 4 MHz: Max. insertion loss (attenuation) 3.7 dB/100m; Min. SRL 23; Max./min. fitted impedance 100 ± 15 8 MHz: Max. insertion loss (attenuation) 5.2 dB/100m; Min. SRL 24.5; Max./min. fitted impedance 100 ± 15 10 MHz: Max. insertion loss (attenuation) 5.8 dB/100m; Min. SRL 25; Max./min. fitted impedance 100 ± 15 16 MHz: Max. insertion loss (attenuation) 7.4 dB/100m; Min. SRL 25; Max./min. fitted impedance 100 ± 15 20 MHz: Max. insertion loss (attenuation) 8.3 dB/100m; Min. SRL 25; Max./min. fitted impedance 100 ± 15 25 MHz: Max. insertion loss (attenuation) 9.3 dB/100m; Min. SRL 24.3; Max./min. fitted impedance 100 ± 15 31.25 MHz: Max. insertion loss (attenuation) 10.4 dB/100m; Min. SRL 23.6; Max./min. fitted impedance 100 ± 15 62.5 MHz: Max. insertion loss (attenuation) 15.0 dB/100m; Min. SRL 21.5; Max./min. fitted impedance 100 ± 15 100 MHz: Max. insertion loss (attenuation) 19.3 dB/100m; Min. SRL 20.8; Max./min. fitted impedance 100 ± 15 155 MHz: Max. insertion loss (attenuation) 24.5 dB/100m; Min. SRL 19.5; Max./min. fitted impedance 100 ± 15 200 MHz: Max. insertion loss (attenuation) 28.3 dB/100m; Min. SRL 18.7; Max./min. fitted impedance 100 ± 15 250 MHz: Max. insertion loss (attenuation) 32.1 dB/100m; Min. SRL 18; Max./min. fitted impedance 100 ± 15 300 MHz: Max. insertion loss (attenuation) 35.6 dB/100m; Min. SRL 17.5; Max./min. fitted impedance 100 ± 15 |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
