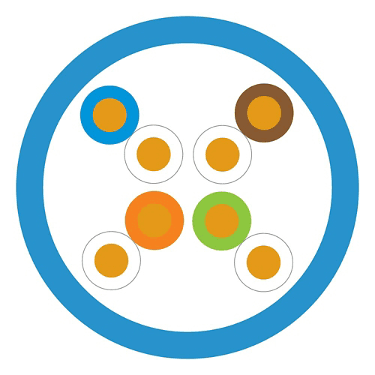

Berk-Tek (Leviton) 10136226, LANmark 6 Category 6 Plenum UTP Cable Blue

Berk-Tek (Leviton) 10136226 LANmark-6 is a Category 6 U/UTP copper data cable with 24 AWG solid conductors and a 4 pair construction. Rated CMP (Plenum) and available in blue, it supports Category 6 performance with usable bandwidth up to 250 MHz and is capable of transmitting applications such as 1000BASE-T. This cable is supplied in a 1000 ft (305 m) box for convenient handling and pull-out during installation.

Technical Specs

Product family	Copper Cable
Brand	LANMARK-6
Category rating	Cat 6
Type	Data
Construction	U/UTP
Shielding	U/UTP - Unshielded Twisted Pair
Conductor size	24 AWG (American Wire Gauge)
Conductor type	Solid
Conductor/pair count	4 pair
Usable bandwidth	up to 250 MHz
Standards	Meets the requirements of ANSI/TIA/EIA-568-C.2
Standards	Conforms to ANSI/TIA/EIA 568-B.2-1 Category 6 and ISO/IEC 11801 2nd Edition Class E Category 6 requirements
Application support	Capable of transmitting applications such as 1000BASE-T
Flame rating	CMP
Fire rating	Plenum
Color	Blue
Length	1000 ft (305 m)
Packaging	Box
RoHS compliant	Yes

Applications

• Supports network links that use 1000BASE-T over Category 6 structured cabling.
• Fits plenum installations where CMP-rated cable is required.
• Reduced diameter construction and a spline-free design help simplify pulling, installation, and termination.

Shipping & Availability

Packaging notes	Delivered in compact, strong, easy to identify boxes
Packaging notes	Superior box design allows cable to be pulled easily from the box with minimum kinking
Packaging notes	Compact box design takes up less shelf space
Packaging notes	Clearly identified packaging eliminates potential confusion

Berk-Tek® is a premium brand of Leviton® Manufacturing Co., Inc., known for high-quality networking and cable solutions. All trademarks are the property of their respective owners.
