Berk-Tek (Leviton) 10136233, LANmark 6 Category 6 Plenum UTP Cable Blue

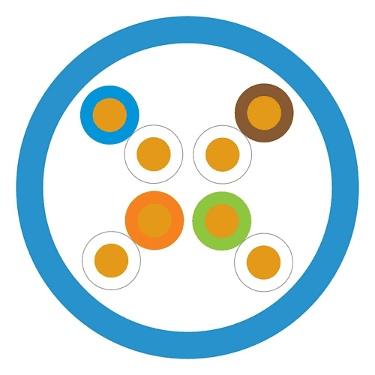

Berk-Tek (Leviton) 10136233 LANmark-6 is a Category 6 U/UTP copper data cable with 24 AWG solid conductors and a blue CMP plenum-rated jacket. It is designed for network performance up to 250 MHz and supports applications such as 1000BASE-T. Its reduced diameter design and no center spline construction help simplify pulling, installation, and termination. It meets the requirements of ANSI/TIA/EIA-568-C.2 and conforms to ANSI/TIA/EIA 568-B.2-1 Category 6 and ISO/IEC 11801 2nd Edition Class E Category 6 requirements.

Technical Specs

Brand	LANMARK-6
Product family	Copper Cable
RoHS compliant	Yes
Category rating	Cat 6
Usable bandwidth	Up to 250 MHz
Meets	ANSI/TIA/EIA-568-C.2
Supports	1000BASE-T
Conforms to	ANSI/TIA/EIA 568-B.2-1 Category 6
Conforms to	ISO/IEC 11801 2nd Edition Class E Category 6 requirements
Construction	U/UTP
Shielding	U/UTP - Unshielded Twisted Pair
Conductor size	24 AWG (American Wire Gauge)
Conductor type	Solid
Pair count	4 pair
Reduced diameter	Reduced diameter design compared to other Category 6 UTP cables
Center spline	Constructed without the center spline for easier installation and termination
Jacket color	Blue
Flame rating	CMP
Fire rating	Plenum
Length	1000 ft (305 m)
Packaging	Reel
Packaging identification	Packaging is designed for easy identification and reduced confusion

Applications

• Use it for structured cabling and network installations that support applications such as 1000BASE-T.
• Install it in plenum spaces where a CMP plenum-rated cable is required.
• During cable runs, the reduced diameter and no center spline construction help simplify pulling, installation, and termination.
