Berk-Tek (Leviton) 10136749, UTP Cat 6 4 Pair 24 AWG Plenum FEP PVC Yellow

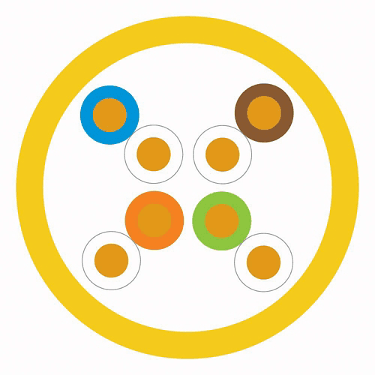

Berk-Tek (Leviton) 10136749 LANMARK-6 is a Category 6 U/UTP copper data cable with 4 pair, 24 AWG solid conductors. It is characterized to 500 MHz and verified as an ANSI/TIA/EIA Category 6 cable. This CMP plenum-rated cable has a yellow jacket and is supplied in a 1000 ft (305 m) box.

Technical Specs

Product family	Copper Cable
Brand	LANMARK-6
Category rating	Cat 6
Type	Data
Shielding/construction	U/UTP
Conductor type	Solid
Conductor size	24 AWG (American Wire Gauge)
Pair count	4 PAIR
Color	Yellow
Flame rating	CMP
Fire rating	Plenum
RoHS compliant	Yes
Length	1000 ft (305 m)
Packaging	Box
Performance	Characterized to 500 MHz
Standards	ANSI/TIA/EIA Category 6 verified Cable
Conformance	Conforms to ANSI/TIA/EIA 568-B.2-1 Category 6 and ISO/IEC 11801 2nd Edition Class E Category 6 requirements

Applications

• Supports network applications such as 1000BASE-T for modern Ethernet networks.
• Ideal for structured cabling and data networks where Category 6 performance is required.
• Fits network applications that extend to 250 MHz.
• Simplifies installation and termination in tight pathways with a reduced Diameter and no center spline.
• Allows clean, efficient pulls from the box with a design intended to pull smoothly with minimum kinking.

Berk-Tek® is a premium brand of Leviton® Manufacturing Co., Inc., known for high-quality networking and cable solutions. All trademarks are the property of their respective owners.
